Outdoor LED Display Installation Guide: A Complete Guide to GE500 Series

Installing an outdoor LED display requires more than simply mounting LED cabinets together. A professional installation process directly affects the display’s stability, visual performance, waterproof reliability, and long-term service life.From steel structure preparation and cabinet alignment to electrical testing and maintenance planning, every step plays an important role in ensuring reliable operation in outdoor environments.The GE500 Series outdoor LED display by Meiyad is designed to deliver installation efficiency and long-term performance. Featuring an aluminum profile cabinet design, excellent heat dissipation, multiple pixel pitch options, energy-saving design, and flexible maintenance features, GE500 provides a reliable solution for commercial outdoor display applications.This guide explains the key steps and considerations for outdoor LED display installation, helping installers and project teams better understand the GE500 structure, preparation requirements, and installation process.Safety TipsWarning! Before installing, powering on, operating, or debugging this product, carefully read the safety precautions provided in this section.Warning NoticeEnsuring Safety - Please carefully read and adhere to the following safety instructions:The equipment complies with the standard GB4943.1-2022.The equipment is safe for use in regions at altitudes below 5000 meters.The plug serves as a disconnecting device. The socket-outlet should be installed near the equipment and must be easily accessible.Do not place exposed ignition sources, such as lit candles, on the equipment.Do not use the product in high-temperature or high-humidity environments. Use the product in low-dust areas and avoid direct exposure to sunlight.Do not attempt to modify, repair, or disassemble the product on your own. Improper handling may lead to short circuits, product damage, or even fire. Unauthorized modifications will void the product's warranty.GE500 Product Overview: Designed for Outdoor LED Display ApplicationsBefore starting an outdoor LED display installation project, it is important to understand the product structure and application requirements.The GE500 Series is a professional outdoor commercial LED display designed for various large-scale visual communication scenarios. It offers multiple pixel pitch options, including P2.97, P3.91, P4.81, P6.25, P7.81, and P10.42, allowing customers to select suitable configurations based on viewing distance and project requirements.The series is suitable for applications such as:Outdoor advertising displaysCommercial building facadesPublic information screensLarge-scale digital signage projectsThe GE500 cabinet adopts a die-cast aluminum design that provides high strength, high precision, and excellent flatness. The lightweight and slim structure makes transportation and installation more convenient, especially for large outdoor projects where installation efficiency is critical.In addition, the modular design improves flexibility during installation and future maintenance, helping reduce project complexity and operation costs.Lightweight and High-Strength Cabinet DesignOne of the key advantages of GE500 is its optimized cabinet structure.The cabinet uses a die-cast aluminum design that combines durability with lightweight construction. Compared with traditional heavy structures, this design helps:Reduce installation workloadImprove transportation efficiencySimplify cabinet handlingMaintain high structural stabilityThe cabinet size is 1000mmx1000mm, with each cabinet consisting of eight modules arranged in a 2x4 configuration. The standardized structure allows installers to assemble large display surfaces more efficiently.GE500 Technical Parameters You Should Know Before InstallationUnderstanding technical parameters before installation is essential for successful outdoor LED display projects.Before preparing the installation structure, project teams should confirm important specifications, including:Cabinet dimensionsModule dimensionsCabinet weightPixel pitch selectionInstallation methodMaintenance requirementsThe GE500 cabinet measures 1000mm in width and 1000mm in height, with a compact thickness design. The module adopts an integrated die-cast aluminum structure, providing both mechanical strength and efficient heat dissipation.Choosing the correct configuration based on the installation environment helps ensure:Proper viewing experienceSuitable installation structureEfficient project planningStable long-term operationFor different application environments, pixel pitch selection should be considered according to screen size, viewing distance, and content requirements.Key Features That Make GE500 Easy to Install and MaintainA professional outdoor LED display should not only deliver excellent visual performance but also provide convenient installation and maintenance solutions.The GE500 Series integrates several design features that improve installation efficiency and operational reliability.Efficient Heat Dissipation DesignOutdoor LED displays often operate under changing environmental conditions, making thermal management an important factor.GE500 uses an integrated die-cast aluminum module design to improve heat dissipation performance. The optimized structure helps maintain stable operation by supporting effective heat transfer.During installation, it is important to ensure that:Air intake and exhaust paths remain unobstructedVentilation areas are not coveredSufficient space is reserved for airflowProper heat dissipation planning helps extend product lifespan and maintain consistent display performance.Quick Lock System for Faster InstallationTime efficiency is an important consideration for large LED display projects.GE500 cabinets are equipped with quick lock structures that simplify cabinet connection and alignment during installation. This design helps installers complete cabinet assembly more efficiently while maintaining accurate positioning.The quick installation structure provides benefits such as:Faster cabinet connectionEasier alignment adjustmentReduced installation timeImproved construction efficiencyFor large outdoor LED display projects, a streamlined installation process can significantly improve overall project progress.Front and Rear Maintenance SupportMaintenance accessibility is another important factor when selecting an outdoor LED display.GE500 supports both front and rear maintenance methods, allowing technicians to access key components including:LED modulesPower supply unitsReceiving cardsThis flexible maintenance design provides several advantages:Easier troubleshootingFaster component replacementReduced maintenance downtimeLower long-term operation costsBy considering maintenance requirements during installation, project teams can create a more efficient and sustainable display system.Outdoor LED Display Installation PrecautionsA successful outdoor LED display installation depends not only on the installation process itself but also on proper preparation and safety management.Before installing the GE500 Series LED display, installers should carefully evaluate the installation environment, prepare the necessary tools, and follow professional safety procedures. Proper preparation helps prevent installation issues and ensures stable operation after completion.Safety Preparation Before InstallationSafety should always be the first priority during outdoor LED display installation.Before beginning construction, installers should establish a clearly marked safety area and ensure that all necessary protective measures are in place.Important safety requirements include:Using appropriate protective equipment, such as safety helmets and safety harnessesFollowing temporary electrical safety regulationsDisconnecting power before installation or maintenance workEnsuring installation is performed by qualified professionalsBefore installing the display structure, the installation team should also verify that the mounting location and supporting structure meet project requirements.A safe installation environment provides the foundation for reliable LED display performance.Cabinet Handling and Installation RequirementsProper handling of LED cabinets is essential to avoid damage during installation.After unpacking the GE500 cabinets, installers should:1. Carefully remove cabinets from the packaging2. Remove protective packaging materials3. Check whether screws, cables, and power connections are secure4. Inspect cabinets for any transportation damageDuring installation:Avoid using excessive force when handling cabinetsDo not strike cabinets with hard toolsProtect the LED module surface from impactEnsure cabinets are installed with accurate alignmentCabinet flatness is especially important. Incorrect alignment between cabinets may create visible gaps or uneven display effects, affecting the overall viewing experience.Waterproofing and Heat Dissipation RequirementsOutdoor LED displays are exposed to changing weather conditions, making waterproof protection and ventilation essential.During installation, installers should pay attention to:Waterproof ProtectionCheck cabinet sealing componentsEnsure waterproof gaskets are properly installedSeal maintenance openings and connection areasPrevent rainwater from entering internal componentsA reliable waterproof structure helps protect electrical components and improves long-term outdoor durability.Heat Dissipation ManagementProper ventilation is necessary to maintain stable operation.Installation teams should:Keep air intake and exhaust areas unobstructedAvoid installing the display against airtight surfacesMaintain sufficient ventilation spaceEnsure airflow channels remain openEffective thermal management helps reduce operating temperature and improves display reliability.Installation Accessories and Tools Required for GE500Having the correct accessories and tools before installation can significantly improve efficiency and accuracy.The GE500 Series installation process requires several key components, including:Cabinet Connecting PlatesConnecting plates are used to secure LED cabinets to the supporting steel structure.They help:Strengthen cabinet connectionsImprove structural stabilityMaintain accurate cabinet positioningBolts and Fixing ComponentsBolts are used together with connecting plates to firmly attach cabinets to the installation structure.Proper tightening ensures:Secure cabinet fixationReduced movement or vibrationImproved long-term stabilityInstallation and Maintenance ToolsGE500 installation requires specialized tools, including:L-shaped hex wrench for cabinet fixingFront maintenance wrench for module removalUsing the correct tools helps prevent damage during installation and makes future maintenance more efficient.Understanding GE500 Cabinet and Module StructureUnderstanding the cabinet and module structure helps installers complete the installation process more efficiently and perform future maintenance correctly.GE500 Cabinet StructureThe GE500 cabinet adopts a modular design that simplifies assembly and maintenance.Each cabinet includes:LED modulesQuick lock systemControl card and power boxCable management structureInstallation connection pointsThe standardized cabinet design allows multiple units to be assembled into large LED display systems while maintaining consistent alignment and structural stability.The cabinet structure supports both front and rear installation methods, providing flexibility for different project requirements.GE500 Module DesignThe GE500 module adopts an integrated die-cast aluminum structure with advantages including:High structural strengthEfficient heat dissipationLightweight designEasy maintenance accessThe modules can be removed from both the front and rear sides of the cabinet.This maintenance-friendly design allows technicians to quickly access modules when inspection or replacement is required, reducing service time and improving operational efficiency.Step-by-Step GE500 Outdoor LED Display Installation ProcessA professional installation process ensures the LED display achieves optimal flatness, structural stability, and long-term reliability.The GE500 installation process mainly includes steel structure preparation, cabinet installation, and final testing.Step 1 — Steel Structure InstallationThe steel structure provides the foundation for the entire LED display system.Before fabrication, the installation team should complete:Site SurveyThe installation environment should be evaluated, including:Installation locationDisplay size requirementsMounting methodStructural conditionsThe collected information is used to determine the appropriate steel structure design.Steel Structure Fabrication and FixationThe steel structure should be manufactured according to approved drawings and securely fixed to the building or supporting surface.After installation, verify:Structural dimensionsPosition accuracyHorizontal and vertical alignmentA stable steel structure ensures that the LED cabinets can be installed accurately and safely.Step 2 — Cabinet InstallationAfter the steel structure is ready, GE500 cabinets can be installed.The recommended installation process is:1. Start Installation from the CenterBegin with the first cabinet at the center position of the display.This helps maintain overall symmetry and improves alignment accuracy.2. Install Cabinets Layer by LayerContinue installation outward from the center.During installation:Connect cabinets using quick locksAdjust horizontal and vertical alignmentCheck cabinet flatness after each section3. Secure Cabinets to the StructureUse cabinet connecting plates and bolts to firmly fix cabinets to the steel structure.Proper fixation ensures:Stable cabinet positioningConsistent display surfaceImproved resistance to outdoor conditionsStep 3 — Final Inspection and TestingAfter the installation is completed, a complete inspection should be performed before the display is put into operation.The final inspection includes:Structural CheckConfirm:All cabinet connections are secureFixing screws are properly tightenedInstallation structure is stableWaterproof InspectionCheck:Sealing areasCabinet protectionMaintenance openingsEnsure there are no potential water leakage risks.Electrical and Display TestingBefore powering on:Check cable connectionsConfirm electrical safetyVerify there are no abnormal connectionsAfter powering on:Check power indicatorsTest display colors, including white, red, green, and blueConfirm all modules operate normallyFinal Checklist After Outdoor LED Display InstallationBefore project completion, confirm the following:Steel structure is stableCabinets are securely fixedDisplay surface is flat and alignedWaterproof protection is completeVentilation channels are unobstructedElectrical connections are safeAll LED modules display correctlyMaintenance access is availableConclusion: Professional Installation Ensures Long-Term GE500 PerformanceInstalling an outdoor LED display requires careful planning, accurate assembly, and professional testing.From product preparation and cabinet installation to waterproof protection and final inspection, every step contributes to the reliability of the finished display system.With its lightweight cabinet structure, modular design, efficient heat dissipation, and maintenance-friendly features, the GE500 Series by Meiyad provides an installation-efficient solution for outdoor commercial LED display applications.By following professional installation procedures, businesses and project teams can maximize display performance, reduce maintenance challenges, and ensure stable operation throughout the product lifecycle.

20｜05｜2026

LED Display Screen Software Installation and Debugging Tutorial

Software Installation, Login & Screen ConfigurationDownload & InstallationOfficial website download:Visit NovaStar official website(www.novastar-led.cn or https://www.novastar.tech) → Support → Software Download, and download the latest version of NovaLCT (recommended v5.5.0 or above).Installation steps:I. Double-click the installation package.II. Use the default installation path.III. Complete installation.IIII. Disable antivirus software temporarily to avoid accidental blockingDevice ConnectionSynchronous System (Direct Network Cable Connection)Step 1: PC → Sending Card: Connect directly via USB cable; or Connect through the same LAN using network cable. (Default IP range: 192.168.0.xxx / 192.168.1.xxx)Step 2: Sending Card → Receiving Card: Cascade via network cables. Receiving card connects to the LED screen HUB board.Asynchronous System (WiFi Direct Connection)Step 1: Connect PC/mobile phone to the player box WiFi (Default SSID: AP + last 8 digits of SN, Password can be found on the device label); or connect through the same LAN.Step 2: Connect the player box to the HUB board (receiving card) and power on.Software LoginStep 1: Open NovaLCT，Click Login→Advanced Synchronous Login，Default password：666 or admin.Step 2: Successful connection message: "Control System 1, No Display Screen"; If connection fails, check wiring and check power supply.Smart ConfigurationStep 1: After login, enter Screen Configuration → Smart Settings.Step 2: Select Chip model, Decoding method, Module size (e.g. 172x86), click Next stepStep 3: Follow the screen instructions: Bright line direction→Color matching→Pixel-by-pixel calibration, generate configuration file (.scfg).Step 4: Click Send to apply parameters to the receiving card.Manual ConfigurationStep 1: Receiving Card Parameters: Enter Receiving Card → Port Configuration → Set width, height, number of data groups, and scan mode (e.g. 1/32 scan).Step 2: Sending Card Resolution: Enter Sending Card → Output Resolution → Enter actual screen resolution (e.g. 1920×1080) → Enable scaling → Click Send.Step 3: Load Configuration File: Supports local (.scfg/.zip) or cloud configuration files. Allows quick parameter reuse. [__LINK_ICON].Program Creation & Publishing (Asynchronous System)Pingjl Installation & OperationStep 1: Download Pingjl from the official website. Double-click the installation file and follow the Pingjl. After first launch, select "Asynchronous Playback" mode. Click "Start Now".Step 2: Open Pingjl and add devices: (Search LAN/WiFi devices, Default password: admin).Step 3: Create a new program: Program Management → New Program. Set resolution matching the screen.Step 4: Add media: Support Add media, Videos (MP4/AVI), Text, Clock, Weather forecast.Step 5: Edit attributes: Playback duration, Transition effects, Loop mode, Multi-layer overlay supported.Program PublishingStep 1: Select the program→Click Publish→Select target terminal→Confirm sending.Step 2: After successful publishing, the player box automatically loads and plays the program. If publishing fails, check network connection→Check device storage.Device Management, Maintenance & Firmware UpgradeFirmware UpgradeEnter Program Upgrade→Connect to the Internet, Select cloud upgrade, Choose corresponding sending card / receiving card firmware, Wait for completion, Do not power off during upgrade.Offline Upgrade：Import local firmware package (.bin), batch upgrade devices:Step 1: Login through "Login → Advanced Synchronous Login",enter password admin or 666. (For asynchronous products (JT/TB series), select Media Player Login）Step 2: Type "admin"or "666888" on the main interface.Step 3: Select communication port. If you need to reconnect the sending card, click "Reconnect".Step 4: Select the range to view, click "Refresh" to view the current software version of the hardware.Refresh All: View all sending/receiving card versions.Specified Refresh: View the software versions of the specified sending and receiving cards.PS: Simply click "Refresh All" on the screen to view the receriving card model and firmware version.Identifying Driver & Decoder Chips：Please refer to the information on the back of the module or on the packaging (you may also contact the relevant project manager for confirmation)Check IC markings on the back of the moduleObtain information according to the correct configuration file provided by the manufacturer:Step 1: In the "Screen Configuration" dialog box on the main LCT interface, select the "Receiving Card" tab.Step 2: Load the correct configuration file provided by the screen manufacturer from the local computer:a. Click "Load from Local";b. Select the configuration file and click "Open";c. After the file is successfully loaded, click "OK".Step 3: Click "View Cabinet" to check the information in the pop-up dialog box.Obtain the Corresponding Correct Firmware Program:You can directly access the public resources through the following links:Novastar Database http://gts.novastar.tech:6150/sharing/oLGDYny5ENovastar Overseas Database http://gts.novastar.tech:6150/sharing/CZRitU08hStep 1: Directly access the Nova database mentioned above.Step 2: From the homepage, follow the path:"Firmware Program > Receiving Card”to enter the receiving card model classification page.Step 3: According to the Nova receiving card model confirmed above, enter the corresponding receiving card page. The following examples use DH-LCE7516 / FS-LCE7516 / MRV416.Step 4: According to the confirmed driver IC and decoder IC used on the module, search for the corresponding firmware in the order of 1, 2, 3, and 5.(Option 4 is firmware for the 99-series chips, and 99-series chips can be searched directly.)OverviewUsing the example above, each folder contains the corresponding firmware and descriptions of the supported chips. You can check the descriptions to identify the driver IC and decoder IC used on your module, and then determine which firmware should be used.Based on the confirmed Nova receiving card model and the driver/decoder ICs used on the LED module, you can find the correct corresponding firmware.Screen MonitoringMonitoring → Device Status:Check temperature, voltage, network cable connection, signal source, and abnormal alarm notifications.Preset Screen: Tools → Preset Screen SettingsSet the display image when the signal is lost or disconnected (such as black screen or fixed logo).TroubleshootingUnable to connect to the deviceCheck USB/network cable, power supply, and IP segment; disable the firewall.Screen garbled/flickeringVerify receiving card parameters, network cable quality, and HUB board (receiving card) wiring; resend the configuration.Program playback abnormalCheck media format and resolution compatibility; restart the player box or republish the program.

31｜01｜2026

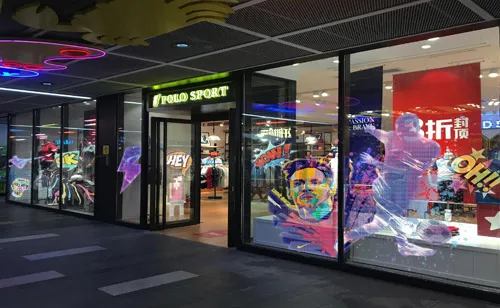

Why Transparent LED Screens Are the Next Big Thing in Smart Buildings?

As modern buildings become smarter and more connected, architects and designers are continuously looking for innovative ways to enhance both the aesthetics and functionality of their spaces. Transparent LED screens have emerged as one of the most exciting technologies to integrate into smart buildings. These screens are not only visually striking but also provide new ways to interact with and advertise through building facades. With the ability to blend technology seamlessly with glass, transparent LED displays are fast becoming a game-changer in architectural design.What Makes Transparent LED Screens Stand Out?Transparent LED display screens offer an unparalleled combination of visual appeal and practical functionality. These advanced displays use LED technology to create vibrant, high-definition images on surfaces such as windows and glass facades, while still allowing light to pass through. With high transparency levels of up to 55%, these displays don’t block the view or natural light—making them perfect for modern buildings that need to maintain openness and transparency.The Key Advantages of Transparent LED ScreensFeatureWhy It MattersHigh Transparency (55%)Maintains natural light without compromising visibility and brightness inside the building.Ultra-light & Ultra-thinAt just 75mm thick and weighing only 10kg/㎡, these screens are easy to handle and install.Wide Viewing AngleThe content remains visible from various angles, offering better user experience.Easy Installation & Cost SavingsQuick to install, reducing both labor costs and installation time while keeping overall expenses down.Energy EfficientLow power consumption ensures long-term cost-effectiveness, especially in large installations.Transforming Glass Into a Dynamic Advertising MediumOne of the most exciting aspects of transparent LED screens is their ability to transform ordinary glass into a high-tech advertising medium. Imagine a building with large windows that not only provide a view of the outside but also display digital ads, videos, or even interactive content. This innovative use of transparent LED display panels turns glass facades into valuable advertising spaces without obstructing light or the view.Meiyad’s transparent LED walls make it easy for businesses to incorporate this technology into their buildings, allowing them to add interactive, eye-catching displays that attract customers and enhance the overall building design.How Transparent LED Displays Work?At the core of transparent LED displays is a sophisticated technology that allows LED lights to be embedded into transparent panels. These displays are mounted on glass surfaces such as windows, allowing for the transmission of light while still displaying vivid content. Meiyad’s transparent LED panels are ultra-light and ultra-thin, which makes them easy to integrate into modern building designs.They work as a digital canvas, offering a variety of potential uses—from advertising and branding to creating immersive experiences for building visitors. By integrating these LED panels into the exterior of a building, owners can transform ordinary glass into an interactive display that communicates with passersby and visitors alike.Why Choose Meiyad’s Transparent LED Displays?Meiyad has over 15 years of experience in the commercial display industry, providing cutting-edge transparent LED display screens that are tailored to the needs of modern businesses. Here’s why Meiyad’s transparent LED screens are an ideal solution for smart buildings:Innovative Technology: Meiyad stays ahead of the curve with the latest LED innovations, ensuring their products offer the best performance and durability.End-to-End Service: From customized designs to content support, installation, and maintenance, Meiyad offers a comprehensive solution for businesses looking to enhance their building's façade with transparent displays.Cost-Effective & Energy-Efficient: Meiyad’s transparent LED panels are not only affordable to install but also reduce long-term operational costs due to their low power consumption and minimal maintenance requirements.Meiyad project: P3.91–P7.82 transparent LED screen Illuminate the Digital Palace Museum Experience at Hengqin Arts CenterThe Future of Transparent LED Screens in Smart BuildingsAs more businesses seek to integrate technology into their buildings, transparent LED screens are poised to become a staple of smart architecture. These screens offer a range of benefits that go beyond advertising—they help businesses save space, reduce energy consumption, and create more engaging environments for their employees, clients, and customers.With the growing demand for smart buildings that offer a mix of technology, style, and functionality, transparent LED display screens are helping to push the boundaries of what’s possible. They provide an innovative solution for incorporating digital signage, advertising, and interactive displays into building facades, making them an essential component in the future of architecture.Conclusion: Embrace the Future of Smart Buildings with Transparent LED TechnologyTransparent LED display screens are not just a trend; they represent the future of how buildings will interact with the world around them. Meiyad’s transparent LED panels offer a unique combination of high transparency, low power consumption, and easy installation, making them the ideal choice for businesses looking to stay ahead of the curve. By integrating transparent LED walls into your building design, you can create dynamic advertising spaces and enhance the overall aesthetic of your property.As smart buildings continue to evolve, transparent LED technology will undoubtedly play a key role in shaping the way we use and interact with space. Whether you’re looking to upgrade your building’s exterior, enhance its energy efficiency, or offer an interactive experience, transparent LED screens are the way forward.

11｜05｜2025

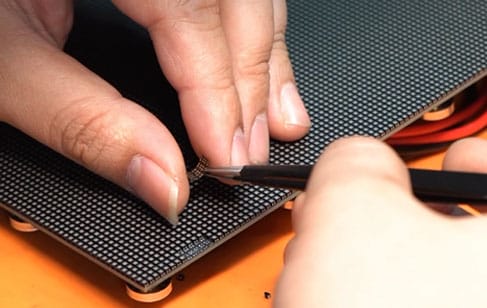

Step-by-Step Guide: How to Repair an LED Display Module?

LED display modules are widely used in various applications, from outdoor LED billboards to indoor LED screens. However, like any electronic device, they are prone to wear and tear over time. Fortunately, many common issues, such as broken LED beads or malfunctioning rows of lights, can be repaired with the right tools and techniques. In this blog, we’ll walk you through two typical repair scenarios for LED display modules and guide you on the necessary steps to get them functioning again. 1. Repairing a Broken LED Bead on the Module One of the most common issues with LED display modules is when an individual LED bead becomes damaged, often due to physical impact or mishandling. A broken LED bead can lead to sections of the screen failing to light up properly. Here's a step-by-step guide to fixing a broken LED bead: Step 1: Cut the Solder Pad Paper Start by cutting a piece of solder pad paper that’s appropriate for the size of the broken LED gap. This will act as the base for fixing the new LED bead. Step 2: Place the Solder Pad Paper Position the solder pad paper over the gap left by the broken LED bead. Ensure that it aligns properly with the surrounding pads. Step 3: Heat and Fix the Solder Pad Paper Use a heat gun or a soldering iron to heat the solder pad paper. This will help it adhere to the module's base. Step 4: Add Solder to the Solder Joint Once the solder pad paper is fixed in place, add solder to the joints where the LED bead will be attached. Step 5: Apply Solder Paste to the LED Bead Pins Before placing the new LED bead, apply a small amount of solder paste to the pins of the LED. This will help the bead adhere properly when heated. Step 6: Place and Align the New LED Bead Carefully align and place the new LED bead in the gap where the old one was. Ensure it is perfectly in place for proper functioning. Step 7: Heat and Fix the LED Bead Now, direct the air gun or heat gun at the LED bead. Heat it until the solder paste melts, fixing the LED bead securely in position. Step 8: Final Check After the bead is in place and has cooled down, check the repair by testing the module. Ensure the new LED bead is functioning properly before reinstalling the module. Click on the link to view our repair video: https://www.youtube.com/shorts/2HRIOX7XGOE2. Repairing a Row of Uncontrolled Lights on the LED Display Sometimes, an entire row of LED beads on the module might remain constantly lit, regardless of the signal sent to the display. This could be due to a short-circuited LED bead or another component failure. Here's how to fix this issue: Step 1: Identify the Problem Module First, locate the module with the row of lights that are stuck on. If only one row is malfunctioning, the issue is likely isolated to that particular module. Step 2: Remove the Faulty Module Carefully remove the faulty module from the display. You may need to unscrew or unclip it, depending on the specific setup. Step 3: Locate the Short-Circuited LED Bead Inspect the row of LED beads to identify which one is short-circuited. You can do this by visually inspecting the beads or using a multimeter to check for continuity between the pins of the LEDs. Step 4: Use the Heat Gun to Inspect Each LED Use a heat gun to heat each LED bead in the affected row one at a time. As you heat the individual LEDs, you may notice one that stops functioning or begins to flicker, indicating the short-circuited bead. Step 5: Remove the Faulty LED Bead Once you have identified the faulty LED, carefully remove it using tweezers or a soldering iron to desolder it from the module. Step 6: Replace with a New LED Bead After removing the damaged LED bead, replace it with a new one of the same type and specifications. Step 7: Heat and Fix the New LED Bead Apply solder paste to the new LED's pins and use the heat gun or soldering iron to fix it in place. Ensure the new LED bead is securely attached to the module. Step 8: Test the Module After replacing the faulty LED, test the module again to make sure the row of lights is now functioning properly. If the issue is resolved, you can reinstall the module back into the display system. Click on the link to view our repair video: https://youtube.com/shorts/ooo34pnG11E?si=ZM4KS_lNsTexBqh2Conclusion Repairing an LED display module may seem daunting at first, but with the right tools and approach, it is certainly manageable. Whether you're fixing a single broken LED bead or dealing with a row of malfunctioning lights, the steps outlined above should guide you in making an effective repair. Always remember to handle components carefully to avoid further damage, and test the module thoroughly after repairs to ensure everything is working as expected. By learning to troubleshoot and repair common issues with LED display modules, you can extend the lifespan of your equipment and keep your display performing at its best.

15｜04｜2025

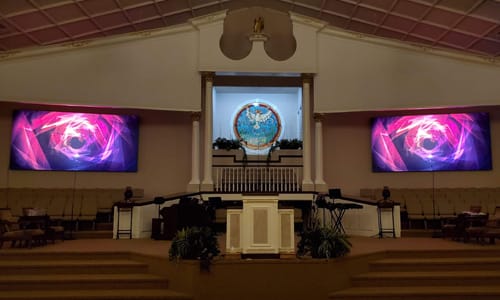

10 Tips to Consider When Buying LED Church Screens

When integrating LED displays into church settings, several design considerations are essential for ensuring both functionality and aesthetics: 1. Screen Size and Placement Determine the appropriate screen size based on the sanctuary's size and seating arrangement. Larger screens or multiple smaller screens may be needed for bigger spaces. Placement should ensure that all attendees, regardless of their seat location, have a clear view without obstruction. 2. Resolution and Pixel Pitch Select a resolution and pixel pitch that match the viewing distance. For large auditoriums, a lower pixel pitch (higher resolution) is crucial for maintaining image clarity from a distance. Ensure the display is clear enough for text and graphics to be readable. 3. Ambient Light Conditions Consider the ambient lighting conditions in the sanctuary. LED displays perform well under various lighting conditions, but choosing a screen with high brightness can prevent glare and ensure visibility in brightly lit spaces. 4. Integration with Existing Systems Ensure the LED display integrates seamlessly with existing AV and lighting systems. Compatibility with audio systems, video sources, and control interfaces will facilitate smooth operation and content management. 5. Aesthetic Integration Design the display to complement the church's architectural and interior design. The display should enhance the worship environment without dominating or clashing with the overall aesthetic. Consider frame styles, mount types, and color schemes that blend with the church’s decor. 6. Accessibility Position screens at heights and angles that are accessible to everyone, including those with disabilities. Ensure text size and contrast are adjusted for readability by all members of the congregation. 7. Content Management Implement a user-friendly content management system to facilitate easy updates and scheduling. This system should allow for real-time changes to announcements, lyrics, and other content during services. 8. Durability and Maintenance Choose robust, high-quality LED displays designed for long-term use. Consider maintenance access and support options to address any issues promptly without disrupting services. 9. Power and Cooling Plan for adequate power supply and cooling requirements. LED displays can be power-intensive and may require proper ventilation to avoid overheating. 10. Budget Considerations Balance the desired features with the budget constraints. While high-end displays offer advanced features, there are also cost-effective options that provide excellent performance for church environments. By carefully considering these design factors, churches can effectively integrate LED displays into their worship spaces, enhancing both the functionality and visual appeal of their services.

15｜03｜2025

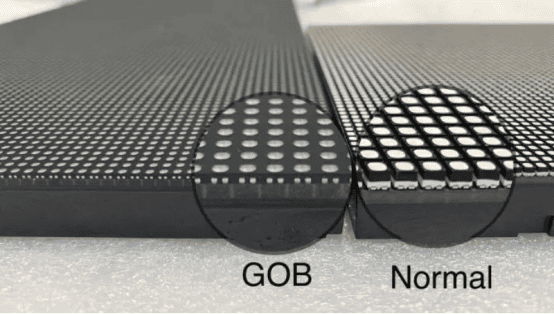

In-Depth Analysis of GOB LED Display: Technology, Advantages, and Applications

In recent years, the development of display technologies has evolved rapidly, with new advancements in display panels providing higher performance, better durability, and enhanced user experiences. One of the most notable innovations in this area is the GOB (Glue On Board) technology, a key process used in modern display production. But what exactly is GOB, and why is it gaining so much attention in the industry? Let’s dive into the details. What is GOB?GOB, which stands for Glue On Board, is a manufacturing process primarily used in the production of display panels, particularly for OLED and LED screens. The GOB process involves applying a layer of protective resin or glue over the LED chips to secure them onto the display panel, providing physical protection while enhancing the performance and durability of the screen. This process is particularly beneficial in the mass production of large, high-resolution displays, where durability and reliability are critical. The GOB technology helps solve many issues associated with traditional display manufacturing methods, including risks of water and dust penetration, as well as challenges in chip alignment and fixation. What Industry Pain Points Does GOB Solve?1. Waterproofing and Dustproofing One of the biggest challenges in display technology, particularly in outdoor and mobile applications, is ensuring the screen is protected from environmental elements like water and dust. GOB offers a strong, protective layer that significantly reduces the risk of water and dust infiltrating the LED chips, which can lead to display failure or reduced performance over time. 2. Chip Protection In traditional methods, LED chips are more exposed, which can make them vulnerable to physical damage during the manufacturing process or later in the product’s lifespan. GOB encapsulates the chips, providing an extra layer of protection against mechanical stress, temperature variations, and external impacts. 3. Improved Longevity and Reliability By enhancing the durability of the individual components and protecting them from environmental damage, GOB extends the overall lifespan of display screens. This is especially crucial for devices that are constantly exposed to heavy usage or extreme conditions, such as automotive displays, outdoor LED signage, and large-scale digital LED billboards. 4. Improved Uniformity GOB technology also helps to maintain the uniformity of the display, improving the overall quality of the visual experience. By securing the LEDs more precisely and reducing misalignments, GOB helps achieve better consistency in brightness and color distribution across the screen. Advantages of GOB Technology1. Enhanced Durability The glue or resin used in the GOB process strengthens the display panel by providing an additional layer of protection for the LEDs. This results in a more durable and robust display, capable of withstanding harsher environments, such as outdoor settings or vehicles, where screens are exposed to significant vibrations and weather conditions. 2. Improved Visual Quality GOB technology leads to more stable and consistent light emission from the LEDs. The resin coating enhances light transmission and minimizes light leakage, ensuring that the display offers superior image clarity and brightness. 3. Cost-Effective Manufacturing Compared to traditional bonding methods that require precision placement of LED chips, GOB allows for a simpler and more efficient production process. This can reduce manufacturing costs and improve the scalability of production for large volumes of displays. 4. Water and Dust Resistance The resin layer provides an extra defense against moisture, dust, and dirt, which can otherwise infiltrate the screen and affect performance. This makes GOB particularly suitable for displays that need to function in outdoor or industrial environments where exposure to such elements is common. GOB Process: A Step-by-Step Breakdown The GOB process consists of several key steps that are crucial for the successful application of this technology: 1. Preparation of the Display Panel The base of the display panel, typically a glass substrate, is prepared by ensuring it is free from contaminants and properly cleaned. 2. Placement of LED Chips The LED chips are carefully placed onto the panel. They are aligned using automated equipment, ensuring that each chip is accurately positioned for optimal display performance. 3. Application of the Glue or Resin Once the LEDs are positioned, a special glue or resin is applied over the chips. This material acts as a protective layer that secures the chips and provides insulation against external elements. 4. Curing Process The glue is then cured using heat or UV light to harden it, ensuring the chips are firmly attached and well-protected. 5. Final Testing and Quality Control After curing, the panel undergoes rigorous testing to check for any defects in alignment, brightness, or color uniformity. Only those panels that meet the strict quality standards are approved for use. What Type of Display Panels is GOB Suitable For? GOB technology is particularly well-suited for display panels that require high durability, such as: 1. OLED Displays OLED panels, which are often used in smartphones, televisions, and other high-end devices, benefit greatly from GOB due to the protection it offers against moisture and other environmental factors that could degrade the OLED’s performance. 2. Outdoor and Automotive Displays GOB is ideal for outdoor LED signage, digital LED billboards, and automotive displays that must withstand challenging conditions, such as direct sunlight, rain, and dust. 3. Large-Scale LED Screens For large-format LED displays in stadiums, shopping malls, or transportation hubs, GOB ensures that the LEDs remain in place and protected over time, maintaining the integrity of the display even in high-traffic environments. 4. Flexible and Wearable Displays GOB can also be applied to flexible LED screen and wearable displays, where the additional protection and durability are key in ensuring long-term performance in various use cases. Conclusion GOB technology represents a significant advancement in display manufacturing, addressing key pain points such as environmental protection, durability, and cost efficiency. By providing an additional layer of protection for LED chips, GOB ensures that displays remain functional and visually consistent over time, even under challenging conditions. This makes it an ideal solution for a wide range of industries, from consumer electronics to outdoor advertising. As demand for high-quality, durable displays continues to grow, the adoption of GOB technology is expected to expand, solidifying its place as a critical innovation in the world of display technology.

13｜07｜2024

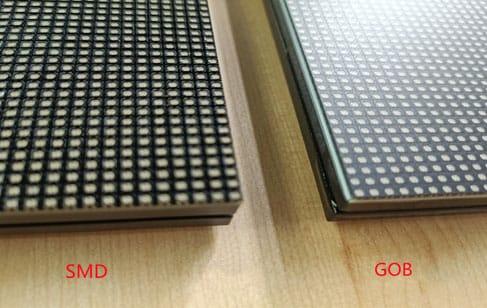

The Difference Between SMD, DIP, COB And GOB LED Screen

The terms SMD, DIP, COB, and GOB refer to different technologies used in LED screens, each with its own characteristics and applications: SMD (Surface Mount Device) LED Screen: SMD LEDs are the most commonly used in modern LED screens. They consist of three LED chips (red, green, and blue) packaged together as a single pixel. SMD LEDs are smaller in size, allowing for higher pixel density and thus higher resolution screens. They generally offer better color accuracy, wider viewing angles, and are more energy-efficient compared to older technologies like DIP. DIP (Dual In-line Package) LED Screen: DIP LEDs are older technology where each pixel is made up of three individual LED bulbs (red, green, and blue). They are larger in size compared to SMD LEDs, which limits the pixel density and resolution. DIP screens are more robust and can emit brighter light, making them suitable for outdoor displays where high brightness is required. They have narrower viewing angles and consume more power compared to SMD LEDs. COB (Chip-on-Board) LED Screen: COB technology involves mounting multiple LED chips directly onto a substrate to form a single module. It eliminates the individual LED packaging found in SMD and DIP, resulting in a higher packing density and improved thermal management. COB LEDs are often used in high-power applications where brightness and efficiency are critical. GOB (Glass-on-Board) LED Screen: GOB technology encapsulates the LED module in a transparent epoxy resin or similar material on a PCB (Printed Circuit Board). This encapsulation enhances the durability and protects the LEDs from environmental factors. GOB screens are typically used in outdoor and rugged environments where protection against moisture, dust, and physical impact is necessary. Key Differences:Size and Pixel Density: SMD LEDs are smaller and allow for higher pixel density compared to DIP LEDs.Color Accuracy and Viewing Angles: SMD LEDs generally offer better color accuracy and wider viewing angles than DIP LEDs.Brightness and Power Efficiency: DIP LEDs can be brighter but consume more power compared to SMD LEDs.Application: SMD LEDs are more commonly used indoors and for high-resolution screens, while DIP LEDs are favored for outdoor and large-scale displays where brightness is crucial. COB and GOB technologies cater to specific needs for durability and specialized applications. Choosing between these technologies depends on factors like the intended use (indoor vs. outdoor), desired resolution, viewing angles, and environmental conditions where the LED screen will be used.

15｜12｜2023

How to Set the Parameters of LED Display Control Card?

When setting the software parameters of the led display control card, you often encounter some problems. For example, don't know how to set the parameters, what the password is, can’t find the software, etc. Different manufacturers of control cards have different parameter items. Meiyad has classified it into three categories: basic parameters, auxiliary parameters and core parameters. Outdoor led display control software has three parameters:Firstly, basic parameters If the the basic parameters settings are incorrect, communication or display will not be possible or the display will be abnormal. The basic parameters include 10 items including display width and height, control card address, baud rate, IP address, port number, MAC address, subnet mask, gateway, refresh frequency and shift clock frequency. Second, auxiliary parameters Auxiliary parameters are parameters set for better display and control, including control card name, communication display mark, brightness and screen switching time. Third, core parameters The core parameters are necessary parameters for the outdoor led display. If the settings are incorrect, the display may not be displayed at all, or the screen may be burned out. The core parameters include cascade direction, OE polarity, data polarity, display type, color, scanning method, point order and row order, a total of 8 items. LED display control software parameter configuration method: For the configuration of basic parameters and auxiliary parameters, input boxes and selection boxes are provided. After the user inputs and selects, they can connect to the display screen and set directly. As for the core parameters, it can be completed using three methods: professional quick check, intelligent configuration and external file configuration. 1. Professional quick check For common and commonly used models of led screens, the parameters are generally fixed. In this case, they can be organized into files or tables in advance, and the configuration can be loaded during debugging. 2. Intelligent configuration For uncommon or uncertain led displays whose parameters are unknown, intelligent configuration can be used to determine their configuration parameters and then be saved for later use. 3. External file configuration Import smart configuration or other external files built into the configuration. Among the three configuration methods of core parameters, intelligent configuration is a more important configuration method. Its main processes and functions are as follows: 1. Start smart configuration. 2. Through the wizard, the user and the led display can make human-computer interaction selections and start the intelligent configuration operation by filling in the initial parameters, determining the OE polarity/data polarity, determining the color, determining the scanning method, determining the point sequence, and determining the row. sequence and generate configuration parameters to complete the determination of core parameters. 3. Return to intelligent configuration parameters. 4. Connect the display and set parameters. 5. If correct, perform output parameter operation. 6. Select the external file and save it for later downloading. At this point, the intelligent configuration of the display screen is completed. Summary: The outdoor led display needs to be correctly configured with more than 20 parameters before it can be lit. You can imagine how cumbersome and complex it is. If the settings are incorrect, the display may not be displayed at all, or the display screen may be burned, causing significant economic losses and delays in construction. Therefore, it is understandable that some led display control software is complex in design and inconvenient to use for the sake of caution and stability.

24｜11｜2023

Meiyad Tell You How To Install Outdoor LED Display

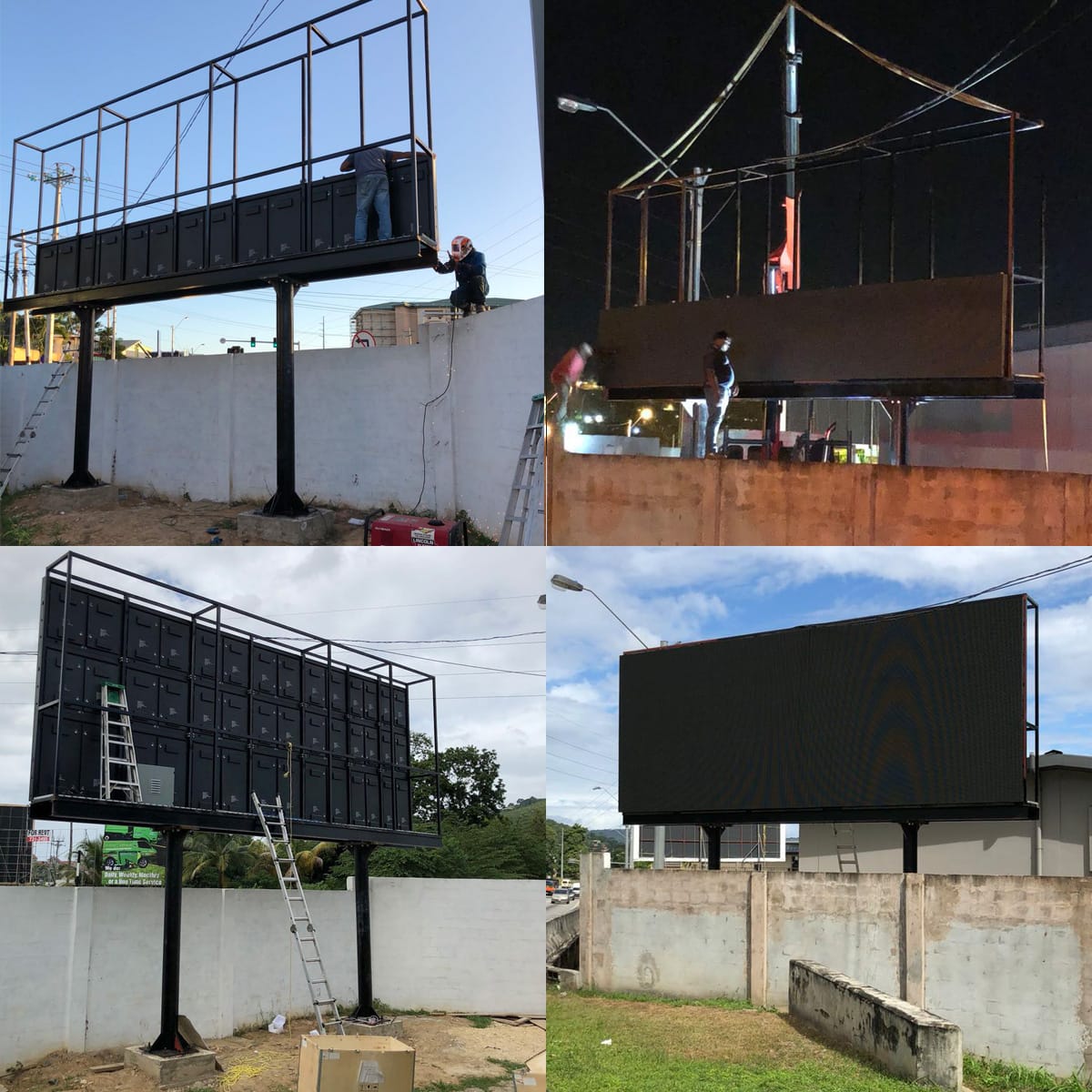

When you want to buy an outdoor LED display, it is very important to quickly understand the installation process and precautions, which can reduce 83% maintenance troubles for your LED display screen, thus prolonging the service life of the outdoor billboard display. Let's quickly understand: 1) Four Steps for the installation of led displays for outdoor billboardsThe first step: Fixing of outdoor LED display When determining the high-level installation position, building a complete “cuboid” solid steel structure and adding a bracket on the back of the display screen is necessary. In this installation step, the entire outdoor LED display can be firmly supported for a long time. Step 2: Install the cabinet of the outdoor LED display The LED display screen is a large screen made up of individual cabinets. As long as any LED box is connected to the power supply, it becomes a small LED display that can display content and text. In this step, you only need to install these “small rectangular blocks” in the calculated steel structure space. Step 3: Power on and debug the outdoor LED display After the LED cabinet of the outdoor LED display is installed, it needs to be connected to the power supply, and then debug and test whether each screen is lit up, whether the screen display is clear and the color is correct, etc. In this step, in addition to debugging, you also need to check whether the lamp beads are damaged in different monochromatic displays. Step 4: Decoration of Outdoor LED Display The decoration of outdoor LED display screens is generally determined according to the building and the surrounding environment. For example, the decoration in the outdoor children’s playground will be more cute and exciting. If it is in the shopping mall, the high-end fashion decoration will give extra points to the advertisement. In this step, it is still visually beautiful, making the LED display screen integrated with the external building, making it more attractive. 2) 5 Useful Outdoor LED Screen Installation Tips1. Installation of lightning protection devices on display screens and buildings Do you know why you need to install lightning protection devices? The LED display is easily “attacked” by ultra-high voltage electricity, which instantly burns out the internal electronic equipment. Yes, if there is no lightning protection device, when there is a thunderstorm, most of the lightning power is 1-1 billion joules. In other words, just ordinary lightning is about 280 kWh, far beyond various countries’ voltage. Standard, even the highest voltage standard in the UK in Europe is only 240V, while the voltage standard in other countries is between 120 and 220V, which is very easy to burn out the internal structure of the LED display. Therefore, to protect the electronic components inside the LED, it is necessary to install a lightning arrester. 2. LED display installation waterproof device LED displays installed outdoors are greatly affected by the environment, so they must have solid environmental resistance. The most taboo thing for electronic equipment is to get wet with water. Water is fluid and very conductive, and it is easy to burn out the circuit when disturbed by water. In addition, the damage caused by water to electronic products is easy to rust. Once the electronic products are rusted, the circuit will lose its electrical conductivity. Therefore, after the first storm, please check whether the screen is leaking. If there is, please use a hair dryer to dry it. It is important to keep the LED display dry and prevent water from flowing into the electronic equipment in the box. (If there is a water leakage problem, for the sake of safety, you must find a professional to find out the cause) 3. Selection of circuit chips The circuit chip chooses to resist the temperature of the external environment. If the extreme temperature climate is encountered, a good industrial-grade circuit chip can operate normally even if the operating temperature is between minus 40 degrees Celsius and 80 degrees Celsius. We often see the fire or crash of the LED display screen in a high-temperature environment or the start of the LED display screen in a low-temperature environment; this is because the circuit chip of good quality is not selected. Of course, there are other reasons, such as very few in the later stage, maintenance, prolonged use, etc. Therefore, it is very important to have a circuit chip that can adjust according to the outdoor ambient temperature. 4. Install cooling equipment Even if there is a good circuit chip, why does the outdoor LED display box need cooling equipment? The main reason is that the screen will generate a certain amount of heat when it is powered on and working. If the heat cannot be discharged and accumulated to a certain extent, the internal temperature will become higher and higher, which can cause serious burns and make the display screen unable to run the job. Therefore, do a good job of internal ventilation and heat dissipation measures of the LED screen to keep the internal temperature between 10 degrees and 40 degrees, which is beneficial to the life of the outdoor LED display. Although there are many cooling systems in the outdoor LED display, due to the changeable and extreme environment, in countries with high temperatures and high heat, air conditioners are generally installed inside to cool down, which is safer and more stable. 5. Choose ultra luminous light emitting diodes The biggest reason for choosing ultra-high luminosity light-emitting lamp beads is the display effect, which will not affect the displayed advertising content because of the high-brightness sunlight outside. The internal photosensitive chip adjusts the brightness according to the environment. When the brightness of the outdoor LED display is not enough, in a hot and bright environment, the displayed content will have problems such as light color and blur. The choice of waterproofing, cooling system, and brightness need to be explained here. When purchasing, you need to explain these data to the merchant or manufacturer of the display screen. For example, IP65 is required for waterproofing; several fans are installed in the cooling system, etc. What type of lamp is it? Beads all need to be figured out.
