How to Install a Foldable LED Poster Display: A Complete Step-by-Step Guide

Introduction

The Foldable LED Poster Display is a compact and portable digital signage solution with a 640 × 1920 mm display area, designed for retail stores, shopping malls, exhibitions, conference venues, hotels, and event spaces. Unlike traditional fixed LED displays, its innovative foldable design allows for easier transportation, faster installation, and more flexible deployment, making it an excellent choice for businesses that require mobility without compromising visual performance.

Whether you're installing a single LED Poster or creating a seamless multi-screen display, proper installation is essential. A correctly installed display not only delivers outstanding image quality but also ensures stable performance, reduces maintenance, and extends the lifespan of the equipment.

This guide provides a complete walkthrough of the installation process—from cabinet assembly and LED display module installation to media controller setup, HDPlayer configuration, multi-screen connection, and transportation. By following these steps, you'll be able to get your Bi-fold LED Poster up and running quickly and efficiently.

Choosing the Right Foldable LED Poster Solution

For applications requiring a larger display area and more flexible deployment options, the Tri-fold LED Poster Display offers an expanded foldable LED solution for exhibitions, retail environments, and large-format digital signage applications.

For detailed installation steps, check out our Tri-fold LED Poster installation guide.

Foldable LED Poster Installation Video Tutorial

Watch the complete Foldable LED Poster installation and operation tutorial video below. This video covers the entire setup process, including screen assembly, controller installation, content uploading, screen connection, folding operation, and transportation preparation.

What You'll Need Before Installation

Before you begin, it's worth taking a few minutes to verify that all components are included and in good condition. Missing accessories or damaged cables can slow down the installation process and lead to unnecessary troubleshooting later.

A standard Foldable LED Poster package typically includes:

• Foldable LED Poster cabinet

• LED display modules

• Media controller

• Power supplies

• Receiving cards

• Main power cable

• Ethernet cable

• Wi-Fi antenna

• Hex wrench

• Flight case (optional)

It's also recommended to prepare a clean, spacious work area. Since LED modules are precision components, keeping dust, moisture, and sharp objects away from the installation area helps protect the display during assembly.

Pro Tip: Before connecting any cables, check that the power is switched off. This helps prevent accidental damage to internal components during installation.

Step 1: Installing the LED Poster Cabinet Components

The cabinet serves as the structural foundation of the entire Foldable LED Poster, so installing its internal components correctly is the first step toward a reliable display.

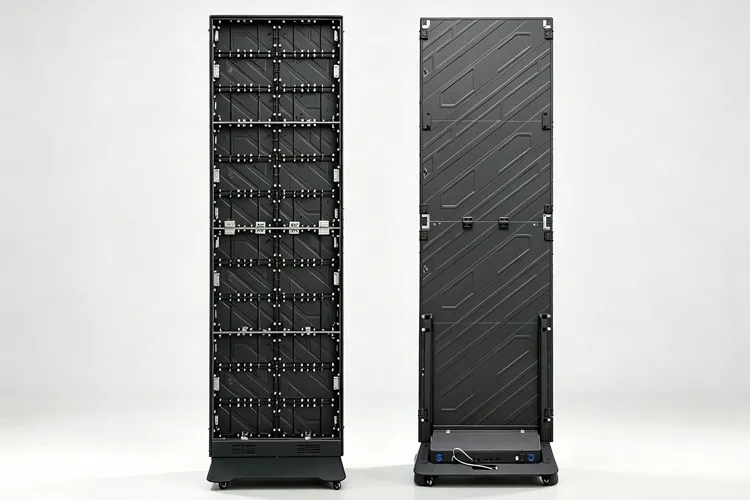

Front and rear view of the empty foldable LED Poster cabinet

Begin by unfolding the cabinet and placing it on a clean, flat surface. This provides a stable working area and helps prevent unnecessary stress on the cabinet frame during installation.

Next, install the power supplies and controller board in their designated mounting positions. Once installed, connect all power cables according to the wiring layout.

Rather than leaving cables loosely arranged, take a moment to organize the internal wiring neatly. Proper cable management improves airflow inside the cabinet, simplifies future maintenance, and reduces the risk of loose connections during transportation.

After the power cables have been connected, use the supplied Ethernet cable to connect the controller board. Before moving on to the next step, double-check that every connector is firmly seated and that no cables are pinched or under tension.

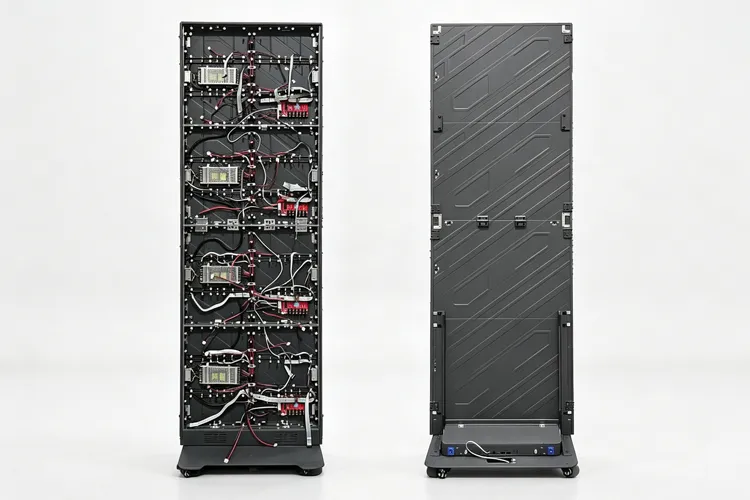

Accessories installation completed

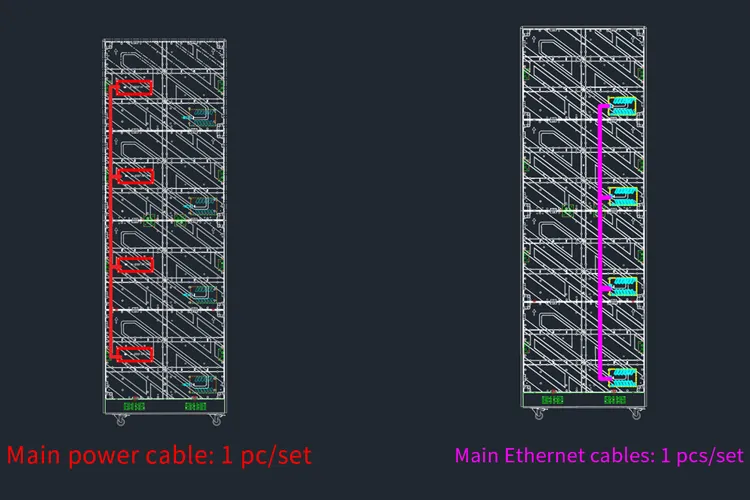

Main Power & Ethernet Cable Routing Diagram

A properly assembled cabinet creates a solid foundation for installing the LED modules and helps ensure stable operation once the display is powered on.

Step 2: Install the LED Display Modules

With the cabinet prepared, the next step is installing the LED display modules that form the display surface.

Each LED module requires two connections before installation: the power ribbon cable and the signal ribbon cable. Make sure both cables are securely connected before placing the module onto the cabinet.

Install the modules one by one, following the correct sequence until the entire cabinet is covered. During installation, avoid applying excessive pressure to the LED surface, as this may damage the LEDs or affect the module alignment.

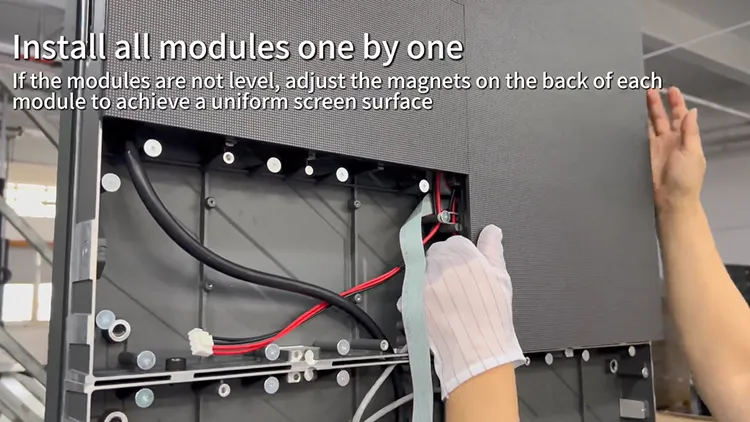

Install all modules one by one

Once every module has been installed, inspect the front of the display from different viewing angles. If you notice any uneven sections, adjust the magnets located on the back of the modules. These magnets allow you to fine-tune the position of each module, creating a perfectly level display surface.

Although this adjustment only takes a few minutes, it has a significant impact on the final visual quality. Even slight differences in module alignment can become noticeable when displaying bright images or large areas of solid color.

A perfectly flat screen surface is essential for delivering a seamless viewing experience and achieving the best possible image quality.

After confirming that all modules are aligned correctly, the LED display assembly is complete.

Module installation completed

Step 3: Setting Up the LED Display Media Controller

Once the LED modules have been installed, the next step is to set up the media controller. This component acts as the "brain" of the LED Poster, receiving content from HDPlayer and controlling how images, videos, and text are displayed on the screen.

Begin by removing the controller mounting base from the cabinet. Securely fasten the media controller to the base using the supplied screws, ensuring that it is firmly fixed before connecting any cables.

Next, install the Wi-Fi antenna. Start by inserting the antenna connector through the mounting hole, then install the inner washer, outer washer, and retaining nut in the correct order. Tighten the nut with pliers before attaching the antenna.

Although the antenna is a small component, it plays an important role. It provides wireless communication between the LED Poster and your computer or mobile device, allowing you to upload content and configure the display without a wired network connection.

After the antenna has been installed, connect the two Ethernet cables and the power cable to their corresponding ports on the media controller. These connections allow the controller to communicate with the receiving cards and distribute image data across the entire display.

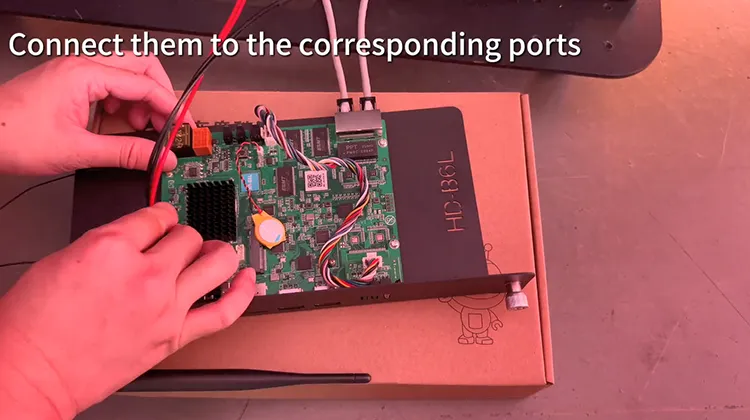

Install and wire the control board and antenna onto the base

Finally, slide the mounting base back into the cabinet and tighten the screws on both sides to secure it in place.

Before moving on, verify that every cable is fully connected and that the antenna is firmly installed.

Step 4: Uploading Content with HDPlayer

With the hardware installation complete, it's time to upload your content to the LED Poster.

HDPlayer is the control software used to configure the display, manage playback, and upload media files. It supports videos, images, text, and other multimedia content, making it easy to create dynamic digital signage for a wide range of applications.

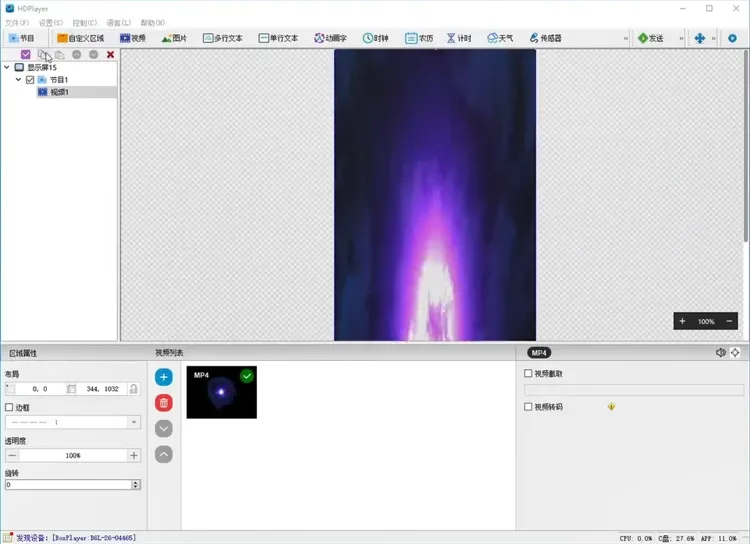

Open HDPlayer to upload videos

To begin, connect your computer to the Wi-Fi network of the LED Poster using the SSID and password shown on the cabinet or controller label.

When HDPlayer is launched for the first time, it may automatically open the Screen Parameter Settings window if the display has not yet been configured.

You can either import the hardware configuration automatically or manually set the display resolution according to your LED Poster specifications.

Once the screen parameters have been configured successfully, the display information and program list will appear in the upper-left corner of the software interface.

To upload content:

• Click the rounded "+" button in the video list.

• Select a video from your computer.

• Preview the content to ensure it displays correctly.

• Click the green Send button to transfer the program to the LED Poster.

After the upload is complete, the content will begin playing on the display.

Besides video playback, HDPlayer also supports images, scrolling text, clocks, weather widgets, and other digital signage elements, allowing users to create engaging multimedia presentations without additional software.

Pro Tip: Before sending a large video file, preview the content in HDPlayer to confirm the resolution and aspect ratio match your LED Poster. This helps avoid image distortion or black borders during playback.

Step 5: Connect Multiple LED Posters

One of the biggest advantages of the Bi-fold LED Poster is its ability to create larger digital displays by connecting multiple units together.

Whether you're building a video wall for an exhibition, a stage backdrop, or a retail display, proper cabinet alignment and signal connection are essential for achieving a seamless visual experience.

Connect the Cabinets

Begin by positioning the LED Posters side by side.

Carefully align the cabinet edges before tightening the side connection locks with the supplied hex wrench. During this process, it's recommended that one person aligns the front surfaces while another secures the locking mechanisms from the side.

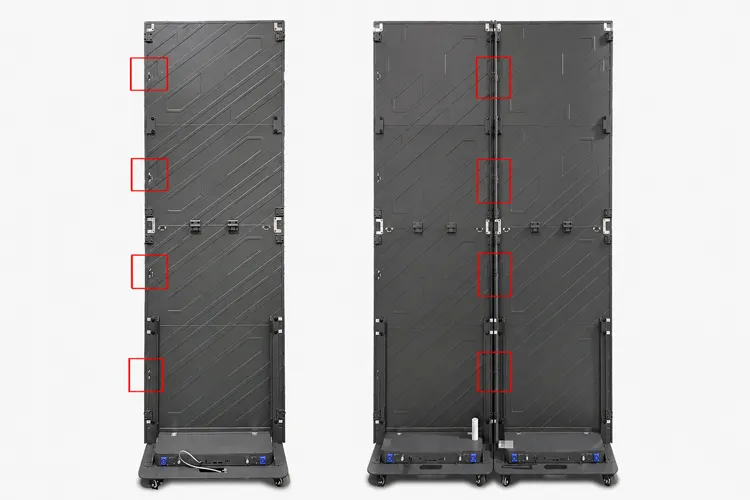

LED Poster Cabinet Lock Positions

Proper alignment minimizes visible gaps between cabinets and creates a cleaner, more professional appearance.

Repeat the same procedure until every LED Poster has been securely connected.

All LED Posters have been connected

Daisy-Chain the Display Signal

After the cabinets have been physically connected, the display signal must also be connected.

Use the HDMI ports located at the bottom of each LED Poster to daisy-chain the displays.

When making the connections, remember the following rules:

• The left HDMI port is IN.

• The right HDMI port is OUT.

• Always connect the displays from right to left.

The first LED Poster only uses its OUT port.

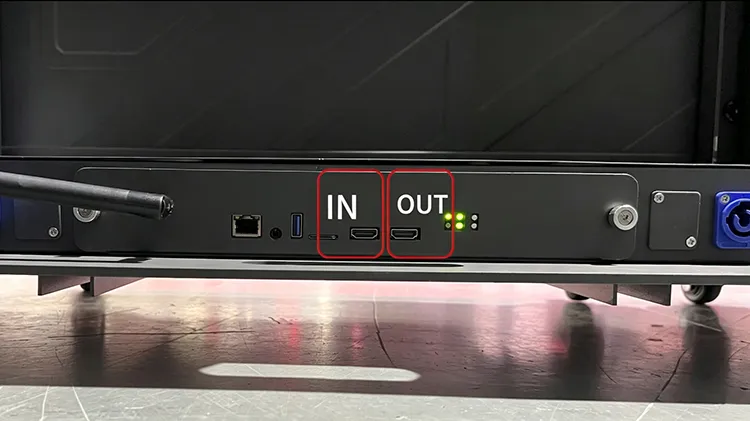

The left port is IN, and the right port is OUT

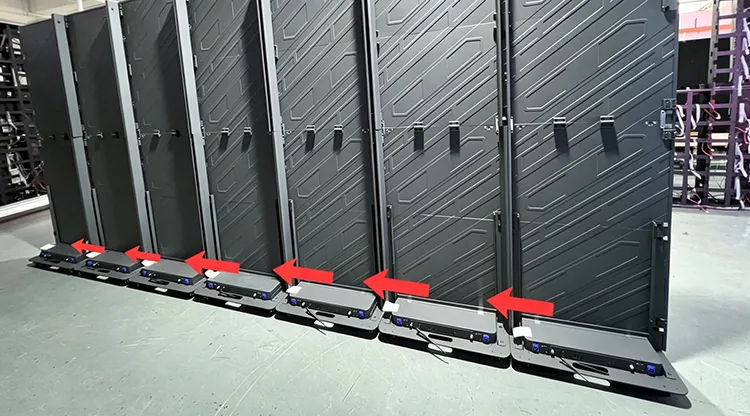

Daisy chain the displays from right to left

Connect the OUT port of the first display to the IN port of the second display, then continue connecting the remaining displays using the same method until the entire display wall is complete.

This daisy-chain configuration allows video signals to be transmitted efficiently across every connected LED Poster without requiring individual content uploads.

Once all HDMI connections have been completed, content only needs to be uploaded to the first LED Poster in the chain.

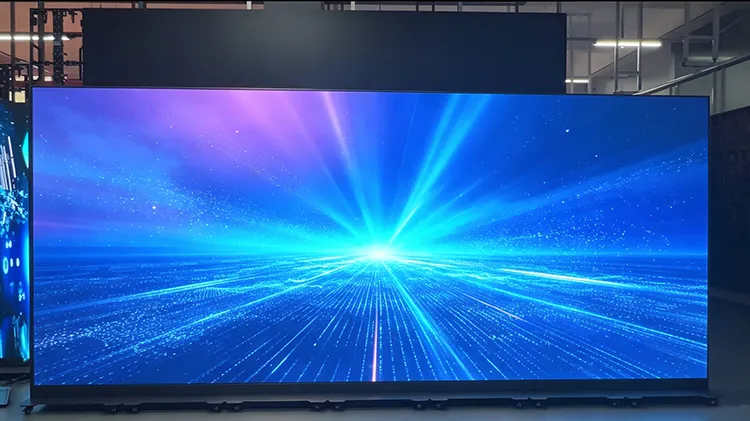

All LED Posters have been connected

Pro Tip: Double-check the HDMI IN and OUT ports before powering on the displays. Incorrect connections are one of the most common causes of signal transmission issues during installation.

Step 6: Configure Canvas Settings

If you're using a single Bi-fold LED Poster, the default screen configuration is usually sufficient. However, when multiple LED Posters are connected to create a larger display, you'll need to configure the Canvas Settings in HDPlayer.

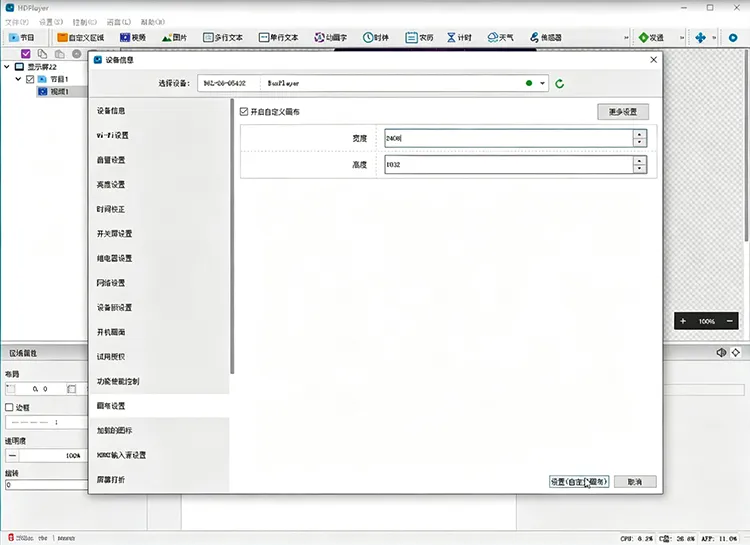

Configure the canvas using HDPlayer

Think of the canvas as the total display area recognized by the software. Without the correct canvas size, content may appear stretched, cropped, or displayed only on part of the screen.

For example, when the total display width exceeds the default configuration, HDPlayer must be told the combined resolution of all connected LED Posters. This allows the software to treat multiple displays as one seamless digital canvas.

When Is Canvas Configuration Required?

For Bi-fold LED Posters, Canvas Settings are required when more than five displays are connected.

If your installation consists of five or fewer displays, the default settings are generally sufficient.

How to Configure the Canvas?

Start by connecting your computer to the Wi-Fi of the first LED Poster in the display chain.

Open HDPlayer, then navigate to:

Control → Device Information

Expand the menu if necessary.

On this page, simply type hdadmin using your keyboard. No input box is required. After entering the password, additional configuration options will become available.

Select Canvas Settings.

Enter the canvas width according to the total number of connected LED Posters, then click Set to save the configuration.

Once the settings have been applied, upload your video or media program as usual. HDPlayer will automatically distribute the content across the entire display wall.

Pro Tip: Configure the canvas before sending your program. If you upload content first and then change the canvas size, you may need to resend the program to ensure it displays correctly.

Step 7: How to Unfold, Fold, and Pack a Foldable LED Poster

One of the biggest advantages of a Bi-fold LED Poster is its portability. Unlike traditional fixed LED displays, it can be folded for transportation and unfolded again within minutes, making it ideal for rental companies, exhibitions, roadshows, and temporary events.

Although the folding mechanism is designed for convenience, following the correct procedure helps protect the cabinet structure and ensures a longer service life.

Unfolding the LED Poster

Before unfolding the display, lock the built-in casters to prevent the cabinet from moving during operation.

Release the side latches and carefully lift the upper section of the cabinet until it reaches its fully opened position.

Once the display is fully extended, secure all folding locks to keep the cabinet stable during use.

Before powering on the display, check that every folding lock has been tightened completely.

Unfolding completed

Folding the LED Poster

When it's time to transport or store the display, reverse the installation process.

First, release all folding locks.

Slowly lower the upper section of the cabinet until it reaches the folded position. Avoid allowing the cabinet to drop under its own weight, as sudden impacts may affect the cabinet alignment over time.

After folding is complete, fasten the side latches securely to prevent the cabinet from opening during transportation.

Taking a few extra seconds to fold the display carefully can significantly reduce the risk of damage during frequent use.

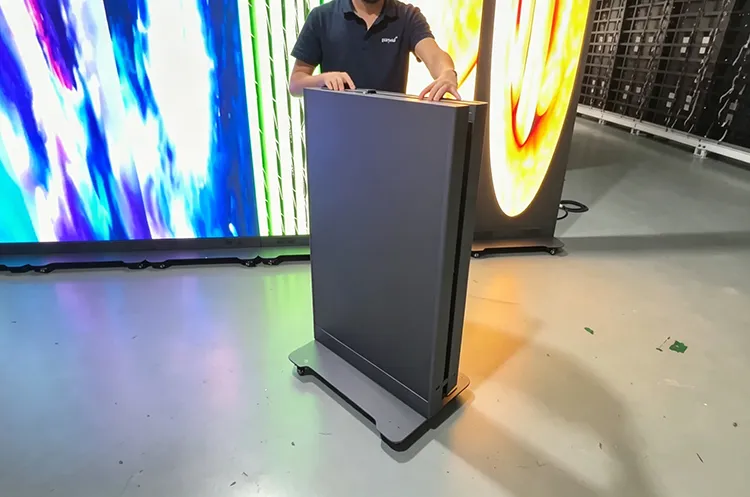

Folding completed

Packing the LED Poster

Once the LED Poster has been folded, it's ready for transportation.

Open the flight case and lower the loading ramp.

Using the built-in casters, carefully roll the folded LED Poster into the flight case. Make sure the side with the bottom connectors faces the open door of the case, ensuring the display is positioned correctly for storage and future installation.

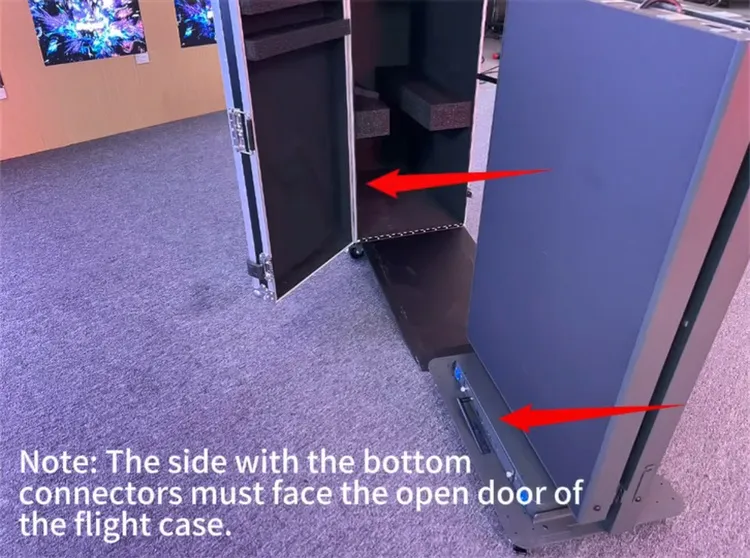

Note: The side with the bottom connectors must face the open door of the flight case

After the cabinet is fully inside the flight case, raise the loading ramp, close the case door, and lock all latches securely.

Proper packing helps protect the LED Poster from vibration, dust, and accidental impacts during transportation, extending the lifespan of both the cabinet and the LED modules.

Pro Tip: Before closing the flight case, make sure no cables or accessories are trapped between the cabinet and the case. Storing cables separately can help prevent unnecessary wear and make the next installation faster.

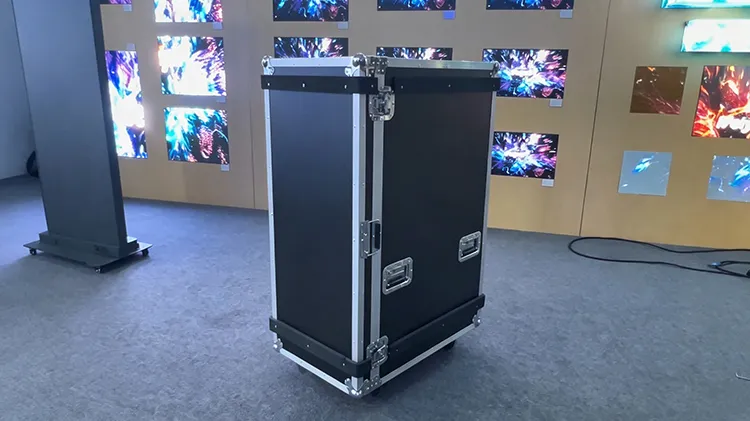

Packing completed

Common Installation Mistakes (and How to Avoid Them)

Even though the Bi-fold LED Poster is designed for quick and straightforward installation, overlooking a few key details can affect display performance or increase installation time. Here are some of the most common issues installers encounter—and how to avoid them.

Connecting the HDMI Ports Incorrectly

One of the most common mistakes is reversing the HDMI IN and OUT ports.

When connecting multiple LED Posters, always remember:

The left HDMI port is IN.

The right HDMI port is OUT.

Connect the displays from right to left.

If the HDMI ports are connected incorrectly, the video signal may not be transmitted properly, causing blank screens or incomplete image display.

Solution: Double-check every HDMI connection before powering on the system.

Skipping Module Alignment

After installing all LED modules, some installers immediately power on the display without checking the flatness of the screen.

Even a slight height difference between adjacent modules can become noticeable when displaying bright backgrounds, solid colors, or high-resolution graphics.

Solution: Adjust the magnets behind each module until the entire display surface is perfectly level.

A few minutes spent on alignment can significantly improve the final visual result.

Forgetting to Configure the Canvas

When multiple LED Posters are connected together, HDPlayer must recognize the total display area.

Without configuring the canvas correctly, the uploaded content may only appear on part of the screen, or the image may be stretched, cropped, or split incorrectly.

Solution: Before sending your program, open Canvas Settings in HDPlayer and set the correct canvas width based on the number of connected LED Posters.

Loose Cabinet Connection Locks

The side connection locks keep adjacent cabinets firmly aligned.

If any lock is not fully tightened, small gaps may appear between cabinets, affecting the overall appearance of the display wall.

Solution: After connecting each cabinet, inspect every connection lock and tighten it with the supplied hex wrench before moving on to the next unit.

Poor Cable Management

Loose or tangled cables inside the cabinet can make future maintenance more difficult and increase the chance of accidental disconnection during transportation.

Solution: Organize all power and signal cables neatly before closing the cabinet. Good cable management not only improves reliability but also simplifies future servicing.

Frequently Asked Questions

Can one person install a Bi-fold LED Poster?

Yes. A single LED Poster can usually be installed by one person.

However, if multiple LED Posters need to be connected together, two people are recommended. One person can align the cabinets while the other secures the connection locks, making the installation faster and ensuring better alignment.

Can multiple LED Posters display one continuous image?

Absolutely.

After connecting the cabinets, daisy-chaining the HDMI signal, and configuring the canvas in HDPlayer, multiple LED Posters function as one seamless display capable of presenting a single image or video across all screens.

What types of media can the LED Poster display?

Using HDPlayer, you can upload and display:

• Videos

• Images

• Text

• Multimedia playlists

This makes the Bi-fold LED Poster suitable for advertising, retail promotions, exhibitions, conferences, corporate events, and many other digital signage applications.

Do I need to configure the canvas every time?

No.

Canvas configuration is only required when the total display width exceeds the default settings or when multiple LED Posters are connected into one large display.

For a single LED Poster, the default configuration is generally sufficient.

Why isn't my video displaying correctly?

If your content doesn't display as expected, check the following:

• Verify that all HDMI cables are connected correctly.

• Confirm that the HDMI IN and OUT ports have not been reversed.

• Check that the screen parameters are configured correctly in HDPlayer.

• Verify that the canvas size matches the number of connected displays.

• Resend the program after making any configuration changes.

Most playback issues can be resolved by checking these settings before troubleshooting the hardware.

Final Thoughts

Installing a Bi-fold LED Poster is a straightforward process when each step is completed carefully. From assembling the cabinet and installing the LED modules to configuring HDPlayer and connecting multiple displays, every stage contributes to the overall performance and reliability of the system.

The foldable design allows the display to be transported, installed, and stored with minimal effort, making it an excellent solution for retail stores, shopping malls, exhibitions, conference venues, rental businesses, and other applications that require flexible digital signage.

By following the installation procedures outlined in this guide, you can ensure stable operation, seamless image quality, and efficient deployment for both single-screen and multi-screen installations.

Whether you're installing your first Bi-fold LED Poster or expanding an existing display wall, careful preparation and proper configuration will help you achieve the best possible results.
