How to Install a Tri-fold LED Poster Display: Setup & Troubleshooting Guide

Introduction

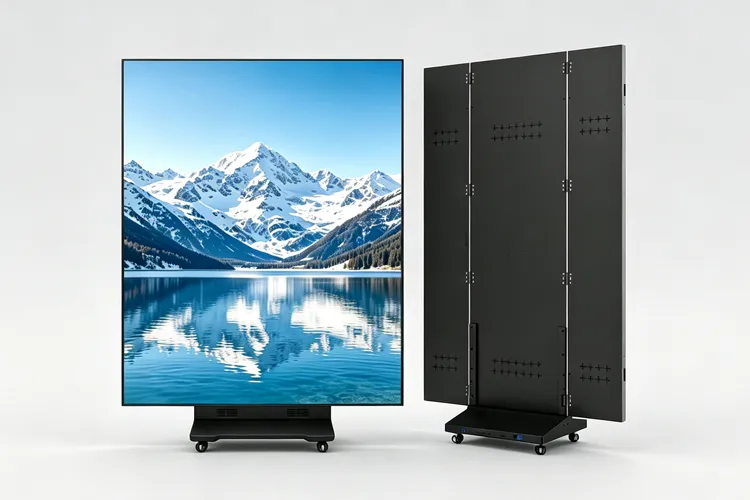

The Tri-fold LED Poster Display features a large 1280 × 1920 mm display area and a flexible folding structure that supports both three-section folding and vertical folding. Designed as an advanced foldable LED screen solution, it combines the visual impact of a large-format LED display with the portability and convenience of a portable LED display system for modern digital signage display applications.

Compared with traditional fixed LED displays, the Tri-fold LED Poster offers faster installation, easier transportation, and greater flexibility for various applications, including retail stores, shopping malls, exhibitions, conference venues, stage backgrounds, and temporary events. These features make it an ideal commercial LED poster solution for businesses looking for flexible advertising and digital signage solutions.

The flexible folding design allows users to quickly expand the display when needed and efficiently store or transport it after use. Whether used as a standalone LED Poster Display or combined with multiple units to create a larger video wall, proper installation is essential for achieving stable performance and excellent image quality.

In this guide, we will walk you through the complete Tri-fold LED Poster installation process, including cabinet assembly, LED module installation, media controller setup, HDPlayer configuration, multi-screen connection, canvas settings, and transportation preparation.

What You'll Need Before Installation

Before starting the installation, it is important to check that all components are available and in good condition. Preparing everything in advance helps avoid unnecessary delays and ensures a smoother installation process.

A standard Tri-fold LED Poster package typically includes:

• Tri-fold LED Poster cabinet

• LED modules

• Media controller

• Receiving cards

• Power supplies

• Ethernet cables

• Main power cable

• Wi-Fi antenna

• Hex wrench

• Flight case (optional)

Before assembly, prepare a clean and spacious working area. Since LED modules are precision components, keeping the installation environment free from dust, moisture, and unnecessary objects helps protect the display surface during installation.

It is also recommended to inspect all cables and connectors before powering on the system. Proper preparation can reduce troubleshooting time and improve installation efficiency.

Pro Tip: Always keep the power disconnected while installing internal components. This helps protect the controller, receiving cards, and other electronic parts from accidental damage.

Step 1: Install the Cabinet Components

The cabinet is the structural foundation of the entire Tri-fold LED Poster, providing support for the LED modules, electronic components, and folding mechanism. Proper cabinet assembly ensures long-term stability and reliable operation.

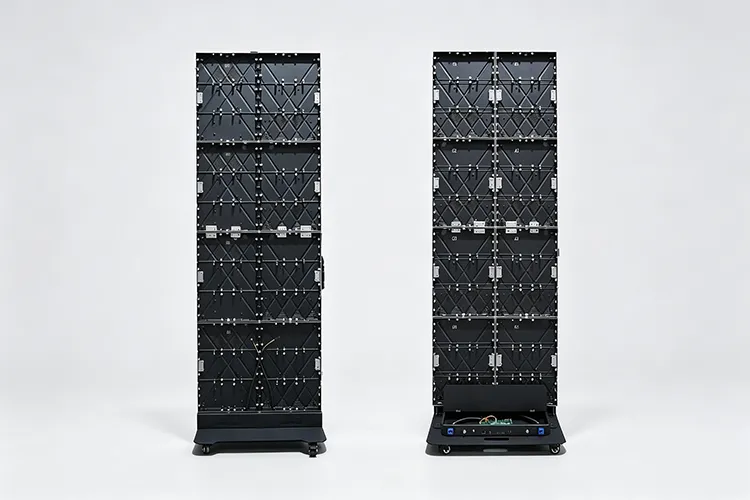

Start by unfolding the cabinet and placing it on a clean, flat surface. Before installing any internal components, make sure all folding locks are securely fastened. This keeps the cabinet stable during installation and prevents movement while working on the display.

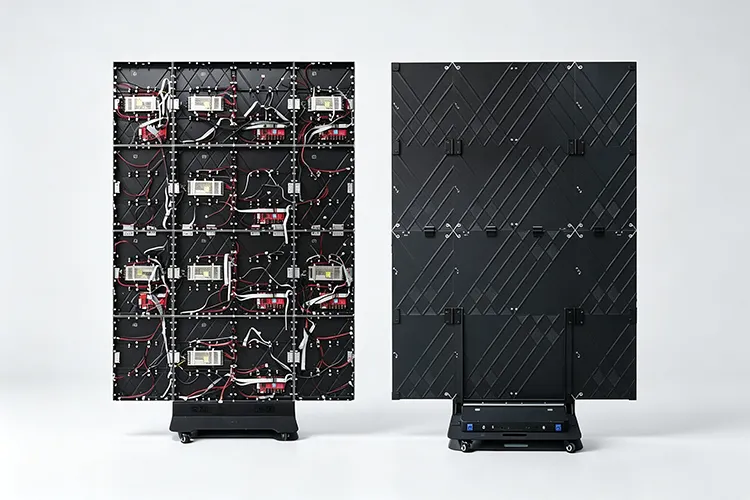

Next, install the power supplies and receiving cards according to their designated positions inside the cabinet.

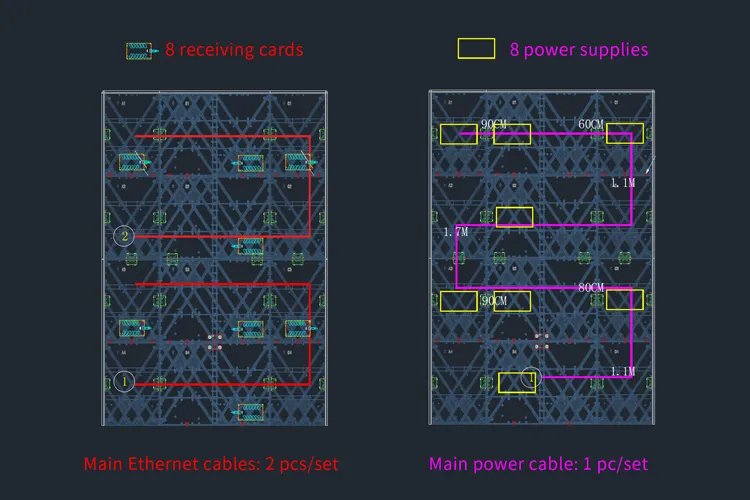

After installing the components, connect all power cables and organize the internal wiring carefully. Good cable management is important for several reasons:

• Improves airflow inside the cabinet

• Makes future maintenance easier

• Reduces the risk of loose connections during transportation

• Creates a cleaner internal structure

Once the power connections are complete, connect the controller board using the supplied Ethernet cables. Make sure every connector is fully inserted and properly secured before moving on to the LED module installation.

A well-prepared cabinet provides a stable foundation for the next installation steps and helps ensure consistent performance of the entire LED Poster system.

Step 2: Install the LED Modules

After the cabinet components have been installed, the next step is mounting the LED modules that create the final display surface.

Each LED module requires two connections before installation:

• Power ribbon cable

• Signal ribbon cable

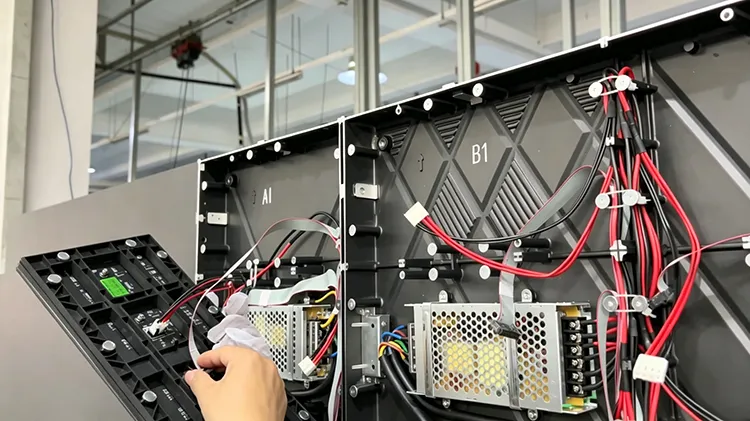

Connect both cables carefully before attaching the module to the cabinet. Make sure the connectors are properly aligned to avoid signal issues or unstable operation.

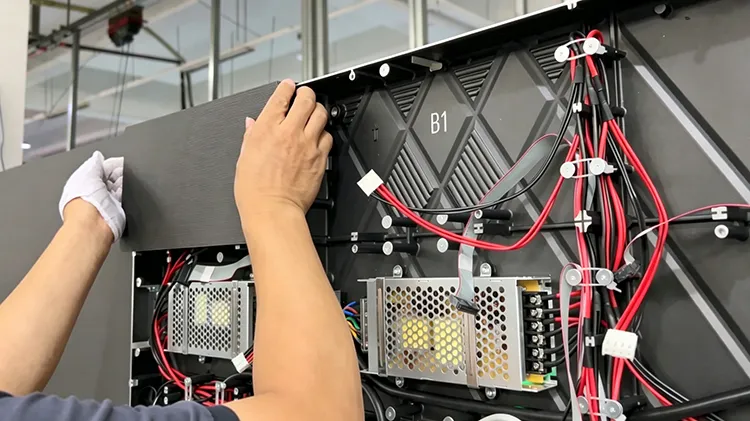

Install the modules one by one following the correct installation sequence until the entire Tri-fold LED Poster surface is completed.

During installation, avoid applying excessive pressure to the LED surface. LED modules contain delicate electronic components, and careful handling helps maintain display quality.

Once all modules have been installed, inspect the entire screen surface from different viewing angles. If any area appears uneven, adjust the magnets located on the back of the modules.

The rear magnets allow installers to fine-tune the position of each module, ensuring the entire display surface remains flat and aligned.

A perfectly flat LED surface is especially important for a foldable LED poster, as uneven modules may become more noticeable when the display shows bright images, solid colors, or high-resolution advertising content.

After completing module alignment, the Tri-fold LED Poster display surface is ready for controller installation and system configuration.

Step 3: Install the Media Controller

The media controller is the core control unit of the Tri-fold LED Poster, responsible for receiving content, managing playback, and communicating with the LED display system. A properly installed controller ensures stable signal transmission and smooth content playback.

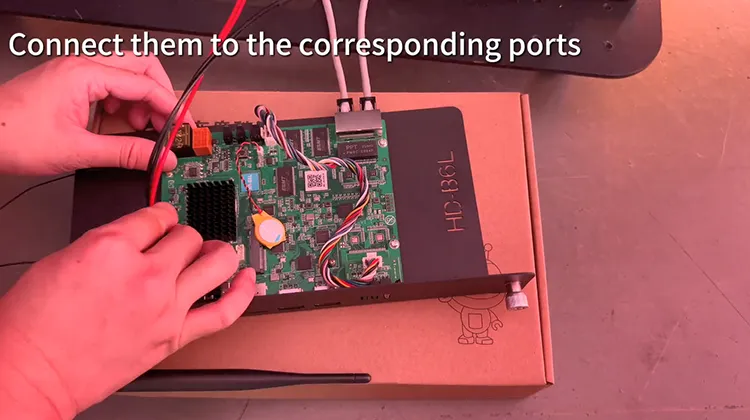

Before installation, remove the controller base from the cabinet and place it in a suitable working position.

Install the media controller onto the base and secure it with screws. Make sure the controller is firmly fixed to prevent movement during transportation or operation.

Next, install the Wi-Fi antenna connection.

The antenna allows wireless communication between the LED Poster and the control software. It is especially useful during content uploading and display configuration, allowing users to manage the screen conveniently without additional network connections.

Follow these steps to install the antenna:

1. Insert the antenna connector through the designated opening.

2. Install the inner and outer washers on both sides of the antenna port.

3. Secure the antenna connector using the nut.

4. Tighten the nut with pliers to ensure a stable connection.

5. Attach the antenna to the connector.

After installing the antenna, remove the two Ethernet cables and one power cable from the cabinet.

Connect each cable to the corresponding interface on the media controller:

• Ethernet cables for signal communication

• Power cable for controller operation

Once all connections are completed, slide the controller base back into the cabinet and tighten the screws on both sides.

The media controller installation is now complete.

A properly installed controller provides reliable communication between the HDPlayer software and the Tri-fold LED Poster, ensuring smooth content management and playback.

Step 4: Upload Content Using HDPlayer

After completing the hardware installation, the next step is configuring the display and uploading content.

HDPlayer is the control software used to configure the LED Poster display parameters, create programs, and upload media files such as videos, images, and text.

Before uploading content, connect your computer to the Wi-Fi network of the Tri-fold LED Poster using the network name and password shown on the display body or controller label.

After connecting to the display Wi-Fi, open HDPlayer.

Configure Screen Parameters

When the display has not been configured previously, HDPlayer will automatically open the Screen Parameter Settings window.

Users can configure the display in two ways:

Hardware Settings

Use the default hardware parameters provided by the system.

Manual Resolution Settings

Disable the hardware setting option and manually enter the correct display resolution according to the LED Poster specifications.

Correct screen parameter configuration is essential because incorrect settings may cause:

• Improper image scaling

• Incorrect display area

• Abnormal content playback

After completing the screen parameter settings, the connected display and current program will appear in the upper-left corner of the HDPlayer interface.

Upload Videos, Images, and Text

The HDPlayer toolbar allows users to add different types of content, including:

• Videos

• Images

• Text

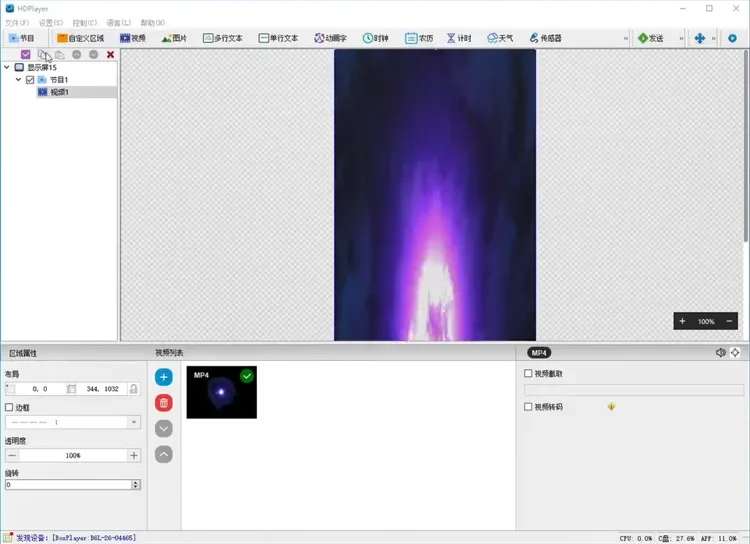

To upload a video:

1. Click the rounded rectangle “+” button in the video list section.

2. Select a local video file from your computer.

3. Preview the video in the current interface.

4. Confirm that the content displays correctly.

5. Click the green “Send” button in the upper-right corner.

6. Wait until the upload process is completed.

Once the sending process finishes, the content will be displayed on the Tri-fold LED Poster.

With HDPlayer, users can easily manage digital signage content and update advertising materials whenever needed.

Step 5: Connect Multiple Tri-fold LED Posters

One of the key advantages of a Tri-fold LED Poster is the ability to combine multiple displays to create a larger LED display solution.

Multiple LED Posters can be connected together for applications that require a wider viewing area, such as:

• Exhibition booths

• Shopping mall advertising walls

• Event backgrounds

• Large promotional displays

Before connecting multiple units, make sure all cabinets are positioned correctly and aligned properly.

Connect the Cabinets

Place the LED Posters close together and align the cabinet edges carefully.

Use the side connection locks and a hex wrench to secure each cabinet.

During the connection process, always check the flatness between displays. Small alignment adjustments can help reduce visible gaps and ensure a seamless appearance.

Make sure all connection locks are fully tightened before moving to signal connection.

A stable cabinet connection provides both mechanical support and a consistent visual experience across multiple displays.

Daisy-Chain the Display Signal

After connecting the cabinets, the next step is connecting the display signal.

The Tri-fold LED Poster uses HDMI ports located at the bottom of the cabinet for signal transmission.

Pay attention to the HDMI port direction:

• IN: Signal input port

• OUT: Signal output port

When connecting multiple LED Posters, the signal should be connected in sequence.

Example:

1. The first LED Poster connects only through the OUT port.

2. Connect the OUT port of the first display to the IN port of the second display.

3. Connect the OUT port of the second display to the IN port of the third display.

4. Continue the same connection method for additional LED Posters.

This daisy-chain connection allows multiple LED Posters to work together as one larger display system.

After completing the signal connection, upload content through the first display and configure the canvas settings to ensure the image is distributed correctly across all connected screens.

Step 6: Configure Canvas Settings

When using a single Tri-fold LED Poster, the default display configuration is usually sufficient. However, when multiple LED Posters are connected together to create a larger display, additional configuration may be required in HDPlayer.

The Canvas Settings function allows HDPlayer to recognize the total size of the combined display. Without the correct canvas configuration, content may not be displayed correctly across all screens. Common issues include:

• Video content appearing only on part of the display

• Incorrect image scaling

• Content being cropped or stretched

• Different sections displaying misaligned images

By setting the correct canvas size, multiple LED Posters can work together as one seamless large-format display.

When Is Canvas Configuration Required?

Canvas configuration is mainly required when multiple displays are connected and the total screen width exceeds the default settings supported by HDPlayer.

For example, when several Tri-fold LED Posters are combined for exhibitions, events, or large advertising installations, HDPlayer needs to understand the complete display resolution before sending content.

This ensures that videos, images, and other media files are distributed correctly across the entire LED Poster system.

How to Configure the Canvas

To configure the canvas, follow these steps:

1. Connect your computer to the Wi-Fi network of the first Tri-fold LED Poster in the display chain.

2. Open HDPlayer.

3. Click Control in the upper-left corner.

4. Select Device Information.

5. Expand the menu options.

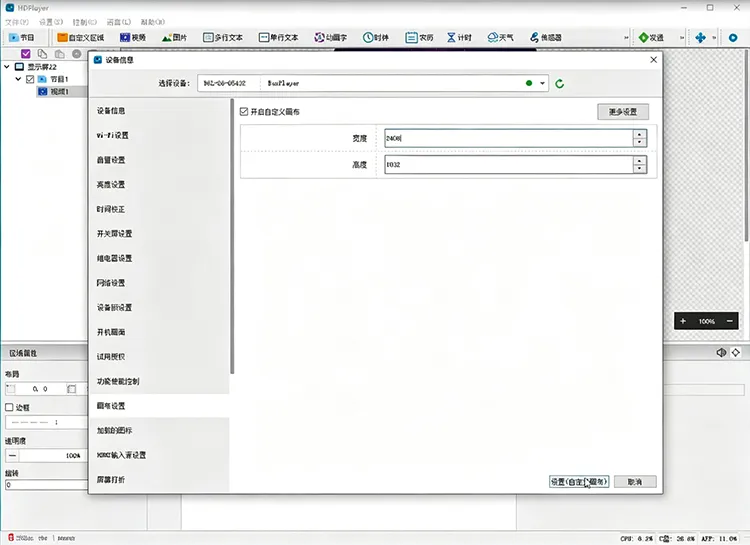

6. On this page, type hdadmin directly using your keyboard.

7. No input field is required. After entering the password, additional configuration options will appear.

8. Select Canvas Settings.

9. Set the canvas width according to the total number of connected LED Posters.

10. Click Set to apply the configuration.

After completing the canvas settings, upload your video or media program as usual.

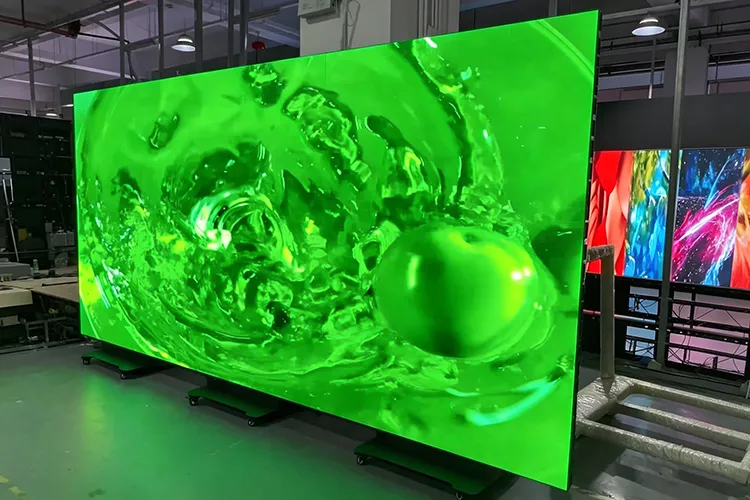

The content will then be distributed across all connected displays as one continuous image.

Pro Tip: Always configure the canvas before sending the final program. If the number of connected LED Posters changes, update the canvas settings and resend the content to ensure correct playback.

Step 7: Fold, Unfold, and Pack the Tri-fold LED Poster

One of the biggest advantages of a Tri-fold LED Poster is its foldable structure. Unlike traditional fixed LED displays, this foldable LED poster can be quickly deployed, folded, and transported, making it an ideal rental LED display solution for exhibitions, events, retail promotions, and temporary installations.

The three-section folding design provides a larger display area while maintaining portability. However, following the correct folding and unfolding procedures is important to protect the cabinet structure and ensure long-term reliability.

Unfolding the Tri-fold LED Poster

Before unfolding the display, first lock the built-in casters to prevent the LED Poster from moving during operation.

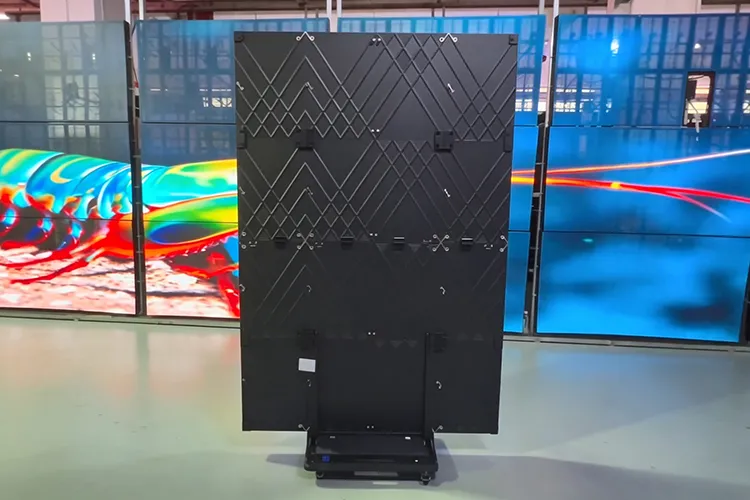

Next, open the folding sections carefully and position the display into its fully expanded configuration.

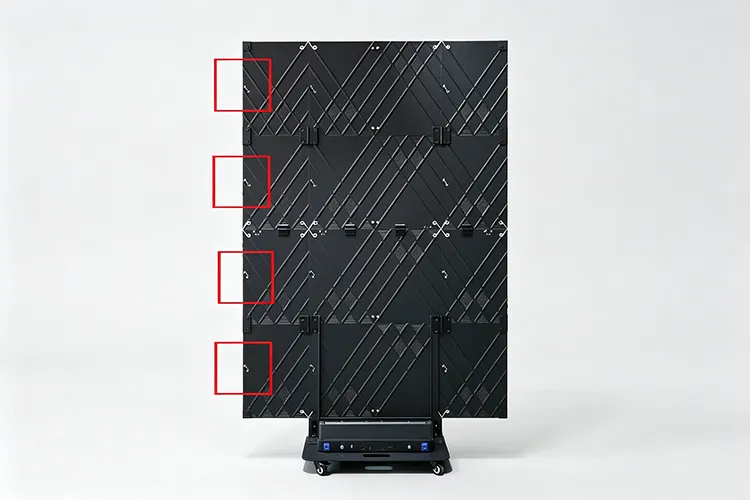

Once the screen is unfolded, use the hex wrench to tighten all folding locks. These locks keep the cabinet sections securely connected and maintain the stability of the display during use.

Before powering on the LED Poster, check that:

• All folding locks are securely tightened

• The cabinet sections are properly aligned

• The display surface is flat and stable

A correctly unfolded Tri-fold LED Poster provides a seamless viewing experience and ensures reliable operation.

Folding the Tri-fold LED Poster

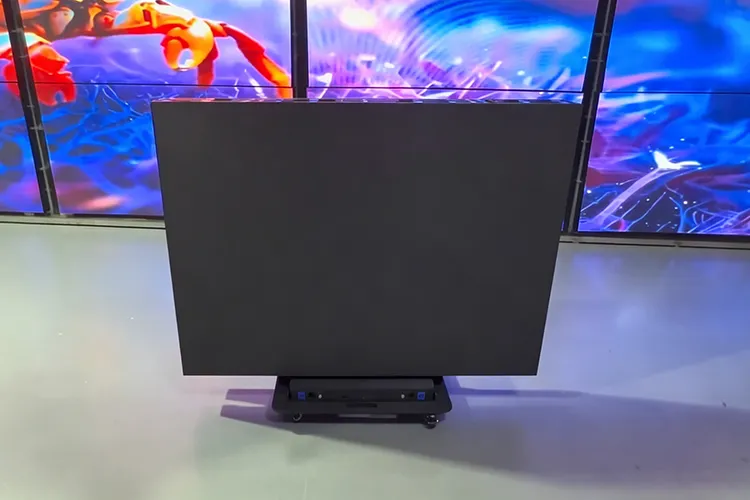

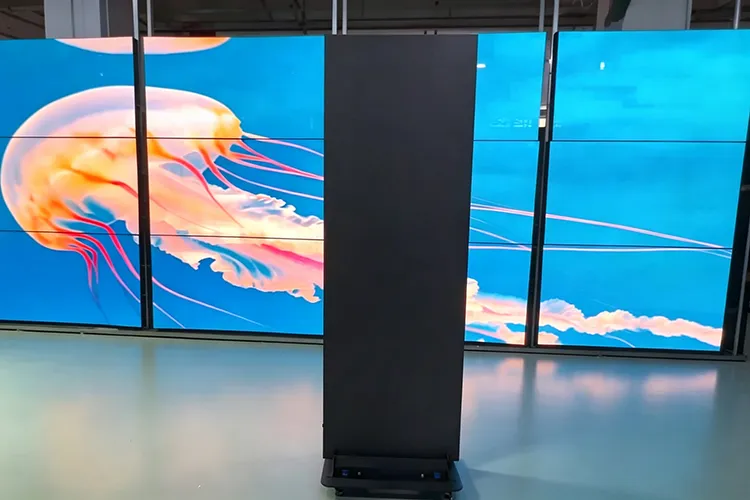

When the display needs to be transported or stored, follow the reverse procedure.

First, use the hex wrench to release all folding locks.

Slowly fold the display sections inward. Avoid applying sudden force during this process, as controlled movement helps protect the folding mechanism and cabinet structure.

After the display has been fully folded:

• Check that all sections are properly aligned

• Secure the folding locks if required

• Prepare the LED Poster for transportation

The foldable design allows the LED Poster to be moved efficiently between different locations while reducing installation time.

Packing the LED Poster for Transportation

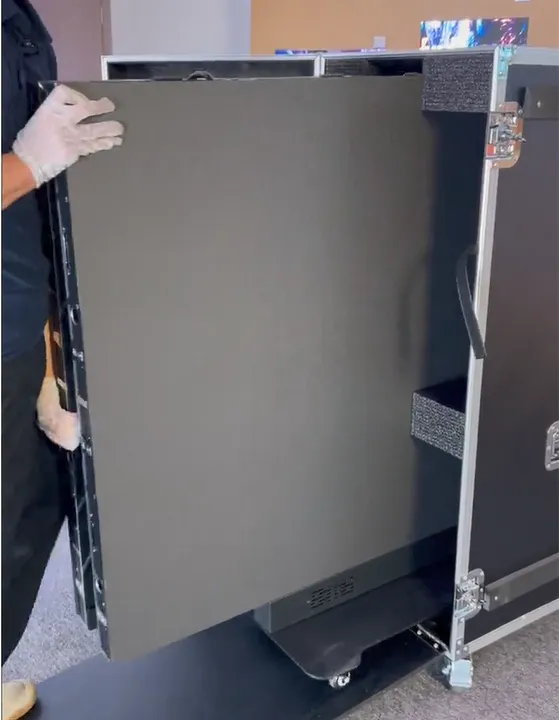

After folding, the Tri-fold LED Poster can be moved into its flight case for safe transportation.

Open the flight case and lower the loading ramp.

Using the built-in casters, carefully roll the folded LED Poster into the flight case.

Make sure the side with the bottom connectors faces toward the open door of the flight case. This positioning allows easier access during the next installation and prevents unnecessary cable handling.

Once the display is fully inside:

1. Raise the loading ramp.

2. Close the flight case door.

3. Lock all case latches securely.

Proper packing protects the LED Poster from vibration, dust, and accidental impact during transportation.

Pro Tip: Before closing the flight case, make sure no cables, accessories, or tools are trapped inside. Keeping accessories organized will make the next installation faster and more efficient.

Common Installation Mistakes (and How to Avoid Them)

Installing a Tri-fold LED Poster is designed to be simple and efficient. However, small mistakes during installation, connection, or configuration may affect display performance.

Understanding common installation issues can help users avoid unnecessary troubleshooting and ensure the LED Poster delivers stable performance and a seamless visual experience.

Incorrect HDMI Connection

When connecting multiple LED Posters together, incorrect HDMI connections are one of the most common causes of display problems.

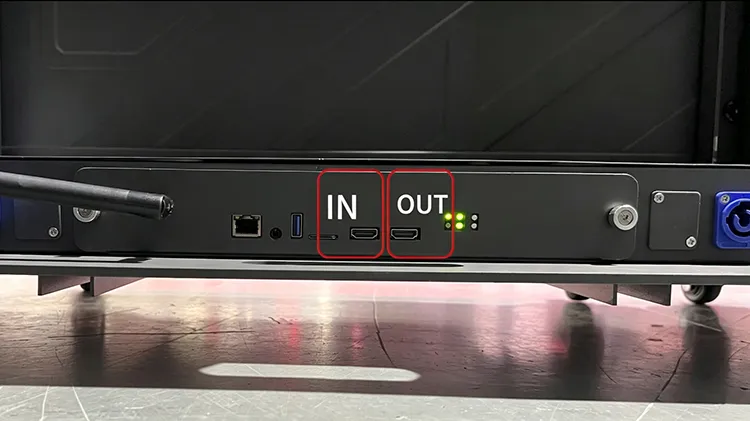

The HDMI ports on the bottom of the cabinet have different functions:

• IN: Signal input port

• OUT: Signal output port

The signal connection must follow the correct daisy-chain order.

For example:

• The first LED Poster receives the signal source through the OUT connection.

• The OUT port of the first display connects to the IN port of the second display.

• Continue connecting each display from OUT to IN.

Connecting HDMI cables in the wrong direction may result in:

• No image output

• Incorrect screen order

• Partial display problems

Always check the IN and OUT labels before connecting multiple Tri-fold LED Posters.

Uneven LED Modules

A flat display surface is essential for high-quality LED content playback.

After installing all LED modules, some areas may appear slightly uneven due to module positioning. This can affect the visual consistency of the entire LED Poster display.

To solve this issue:

1. Check the alignment of each module.

2. Adjust the rear magnets behind the LED modules.

3. Fine-tune the module position until the screen surface is flat.

Proper module adjustment ensures:

• Better visual uniformity

• More seamless image presentation

• Improved viewing experience

This step is especially important for a large foldable LED poster, where small alignment differences can become more visible across the expanded display area.

Incorrect Canvas Configuration

When multiple LED Posters are connected together, the total display resolution must be configured correctly in HDPlayer.

If the canvas width is not set properly, users may experience:

• Missing content areas

• Incorrect image positioning

• Videos not covering the entire screen

Before uploading the final program:

1. Confirm the number of connected displays.

2. Set the correct canvas width in HDPlayer.

3. Send the program again after configuration.

Correct canvas settings allow multiple displays to function as one large LED screen.

Loose Folding Locks

The folding mechanism is one of the key features of the Tri-fold LED Poster. The folding locks provide structural stability when the display is expanded.

Before using the display, always check that:

• All folding locks are fully tightened

• The cabinet sections are properly aligned

• The screen is stable before operation

Loose folding locks may cause:

• Cabinet movement

• Uneven screen alignment

• Reduced stability during use

Always secure all locks before powering on the LED Poster.

Poor Cable Management

Proper cable organization is important for both installation efficiency and long-term maintenance.

Avoid:

• Loose cables inside the cabinet

• Incorrect cable routing

• Unsecured connectors

Good cable management helps:

• Improve airflow

• Reduce maintenance time

• Prevent connection issues

• Protect cables during transportation

A well-organized internal structure ensures the LED Poster display remains reliable throughout its service life.

Frequently Asked Questions

What Is the Difference Between a Bi-fold and a Tri-fold LED Poster?

The main differences between a Bi-fold LED Poster and a Tri-fold LED Poster are the display size and folding flexibility.

The Bi-fold LED Poster features a compact folding design, making it ideal for applications that require easy transportation, quick setup, and space-saving deployment. For a complete installation guide, you can also read our Bi-fold LED Poster installation guide.

The Tri-fold LED Poster provides a larger 1280 × 1920 mm display area. In addition to its three-section folding structure, it also supports vertical folding, offering greater flexibility for transportation and installation.

With its larger screen area and flexible folding options, the Tri-fold LED Poster provides greater versatility for exhibitions, retail stores, events, and commercial digital signage applications.

Both products belong to the foldable LED poster category and provide the advantages of:

• Easy transportation

• Fast installation

• Flexible deployment

• Reliable LED display performance

The choice between a Bi-fold LED Poster and a Tri-fold LED Poster depends on your required display size, available installation space, transportation needs, and application scenario.

Is a Tri-fold LED Poster the Same as a 5-fold LED Poster?

Yes. Some users refer to the Tri-fold LED Poster as a 5-fold LED Poster because of its flexible folding structure. Unlike a standard three-panel folding display, it supports both three-section folding and vertical folding, providing more flexible transportation and deployment options.

Can Multiple LED Posters Display One Large Image?

Yes.

Multiple LED Posters can be connected together to create a larger continuous display.

By using HDMI daisy-chain connections and configuring the canvas settings in HDPlayer, multiple displays can work together as one large LED screen.

This feature is ideal for:

• Exhibitions

• Events

• Retail advertising

• Large promotional displays

• Digital signage display applications

Can One Person Install a Tri-fold LED Poster?

Yes, a single person can install a Tri-fold LED Poster in many situations, especially when the display is used as a standalone unit.

However, when connecting multiple LED Posters together or positioning large display systems, having two people is recommended. Additional assistance makes cabinet alignment easier and helps ensure a safer installation process.

Does the Tri-fold LED Poster Support Video Playback?

Yes.

The Tri-fold LED Poster supports various types of digital content, including:

• Videos

• Images

• Text

• Advertising programs

Through HDPlayer, users can easily upload and manage content according to different application requirements.

How Long Does It Take to Install a Tri-fold LED Poster?

Installation time depends on the application and whether additional displays are connected.

For a single unit, installation mainly involves:

• Unfolding the cabinet

• Checking connections

• Configuring the display

• Uploading content

For multiple connected displays, additional time may be required for cabinet alignment, HDMI connection, and canvas configuration.

The foldable structure helps significantly reduce setup time compared with traditional fixed LED display installations.

Final Thoughts

The Tri-fold LED Poster Display combines the visual impact of a large LED screen with the flexibility of a portable foldable LED poster solution.

By following the correct installation process, users can quickly assemble the cabinet, install LED modules, configure HDPlayer, connect multiple displays, and prepare the system for transportation.

Proper installation not only ensures stable performance and excellent image quality but also helps extend the service life of the LED Poster system.

With its flexible folding design, easy deployment, and powerful digital signage capabilities, the Tri-fold LED Poster is an ideal portable LED display solution for retail stores, exhibitions, events, and other commercial LED poster applications.
