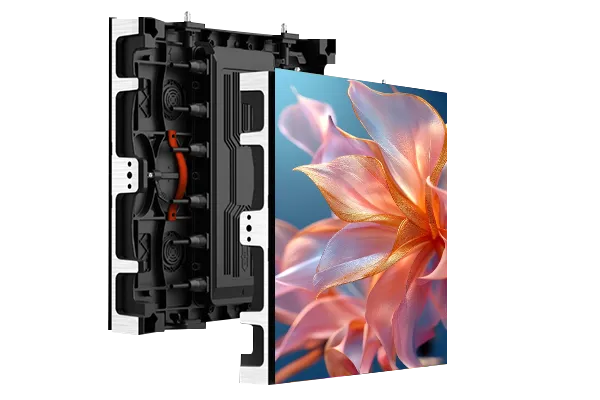

GT-Plus Series LED Floor Display
- Indoor: P2.5 P2.6 P2.976 P3.91 P4.81 P5.2 P6.25
- Outdoor: P3.91 P4.81 P6.25
- Cabinet size: 500*500mm
- GT-Plus series floor LED display features a durable die-cast aluminum cabinet and built-in interactive sensing technology for engaging interactive experiences.

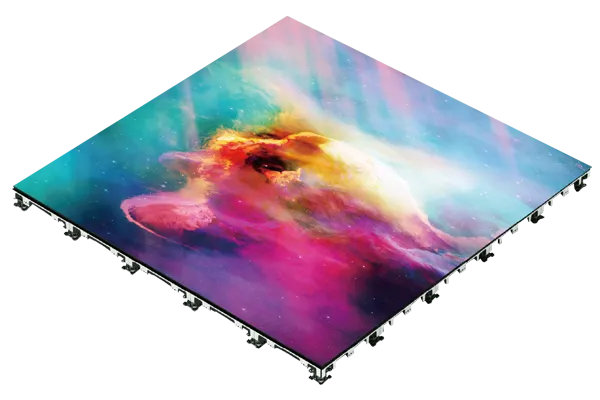

500×500mm Die-Cast Aluminum Cabinet
Featuring a high-strength load-bearing structure, the cabinet is durable, impact-resistant, and deformation-resistant. Designed for high-frequency applications such as foot traffic and interactive experiences, it ensures stable and reliable long-term performance.
High Load-Bearing Capacity
Built with a high-strength structure, the GT-Plus Series supports heavy foot traffic and high load capacity, ensuring stable performance in commercial, stage, exhibition, and interactive applications.
Interactive Solution Customization

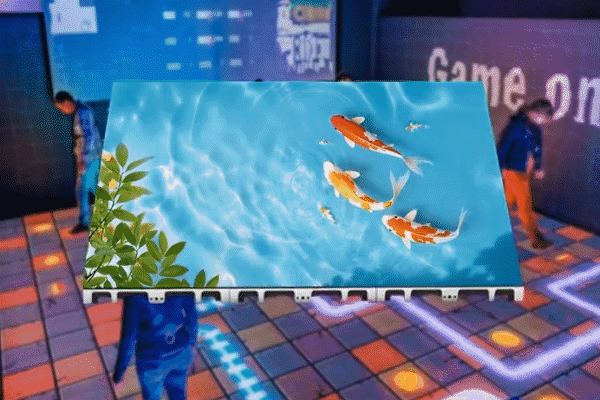

Equipped with a built-in interactive sensor chip, the GT-Plus Series works seamlessly with an interactive control system to deliver real-time motion-triggered effects and immersive interactive gaming experiences.
Anti-Slip & Moisture Protection
Designed for floor applications, the bottom housing, mask, power cables, and signal cables are made with waterproof and moisture-resistant materials. Low water absorption materials and multiple sealing treatments provide excellent moisture protection, while the anti-slip surface design ensures safe and reliable operation.

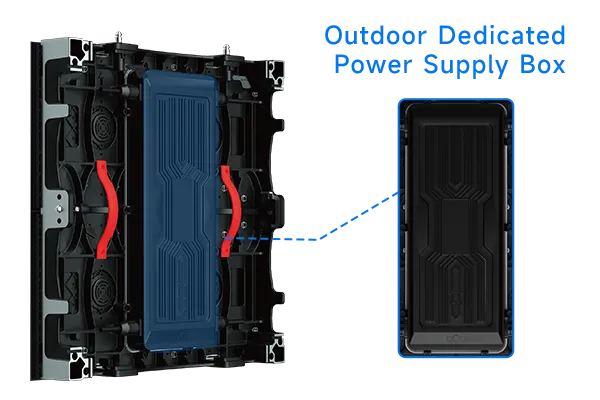

Outdoor Dedicated Power Supply Box Design
With IP67 waterproof protection at every signal and power connection point, the design ensures excellent protection and stable performance in harsh outdoor conditions.
Applications
Ideal for shopping malls, commercial plazas, exhibition halls, stages, theme parks, retail stores, hotels, convention centers, and interactive entertainment venues. With high load capacity, intelligent interactivity, and immersive visuals, Meiyad LED Floor Displays deliver safe, reliable, and engaging interactive experiences.
Hotel
Shopping Center
Technical Parameters
Contact us for detailed parameters.
| Application | Indoor | Outdoor | ||||||||
| Model | P2.5 | P2.6 | P2.976 | P3.91 | P4.81 | P5.2 | P6.25 | P3.91 | P4.81 | 6.25 |
| Cabinet Resolution | 200x200 | 192x192 | 168x168 | 128x128 | 104x104 | 96x96 | 80x80 | 128x128 | 104x104 | 80x80 |
| Module Size (W×H/mm) | 250.85x250.85x18 | 249.8x249.8x18 | 249.6x249.6x18 | 249.4x249.4x18 | 249.5x249.5x18 | |||||
| Cabinet Size(W×H×D/mm) | 502x502x80 | 500x500x78 | 500.5x500.5x84 | |||||||
| Cabinet Weight (kg) | ≈11.6 | ≈24 | ||||||||
| Brightness (nit) | ≥1200 | 3000 (Common Anode), 5000 (Common Cathode) | ||||||||
| Refresh Rate (Hz) | 1920-7680Hz (optional) | 1920-7680Hz (optional) | ||||||||
| Max. Power Consumption (w/㎡) | 400 | 800 | ||||||||
