Rental LED Screen SD Series
- Pixel pitch: P2.604 P2.976 P3.91 P4.81
- Cabinet size: 500*500mm 500*1000mm
- The refresh rate can reach up to 7680Hz, which can meet the needs of sports scenes. The two sizes of cabinets can be spliced in different positions to display various creative shapes.

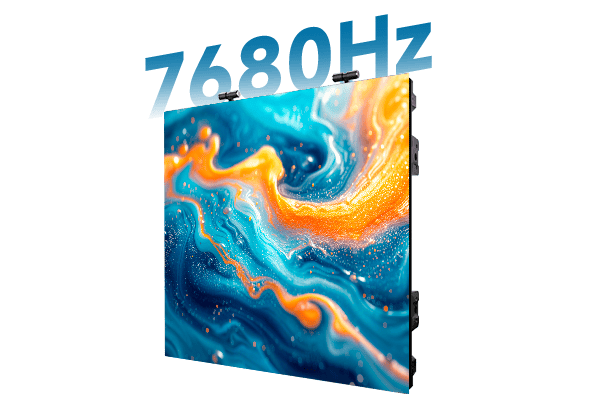

High refresh rate
The refresh rate can reach up to 7680Hz, which meets the needs of high-speed dynamic picture playback in sports scenes, and the picture is high-definition without residual image.

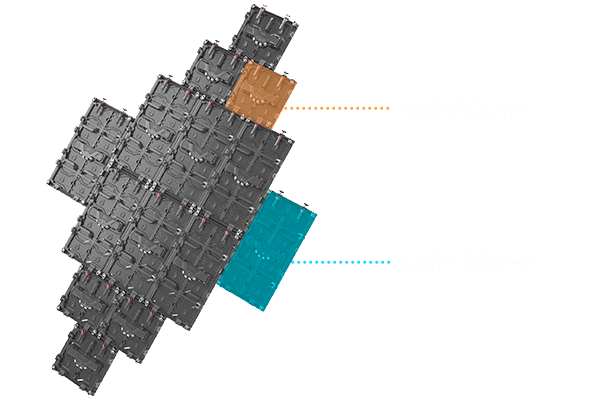

Support special-shaped assembly
500*500mm and 500*1000mm can be assembled, and can also be assembled in a staggered manner to meet various creative displays.

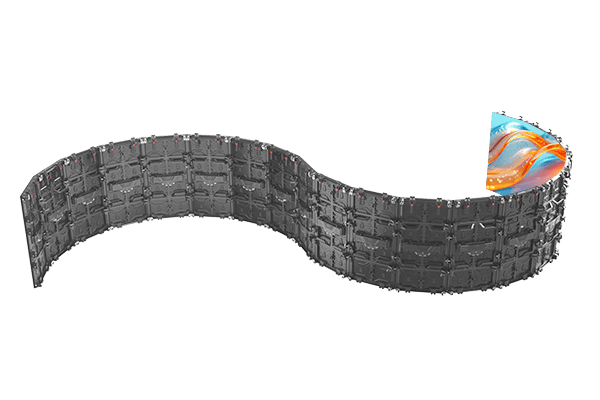

Support arc shape
Support arc shape cabinet customization, arc shape assembly at multiple angles, including (-10°, -7.5°, -5°, -2.5°, 0°, 2.5°, 5°, 7.5°, 10°)

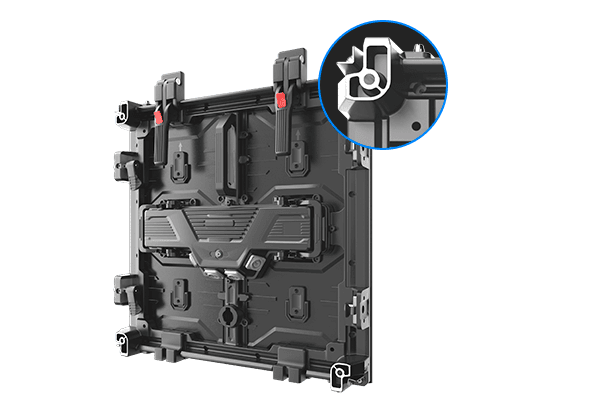

High protection, anti-collision and anti-knock
The cabinet has a corner protection design, which can effectively protect the module with the anti-knock at the bottom of the cabinet, and the anti-collision performance is improved.

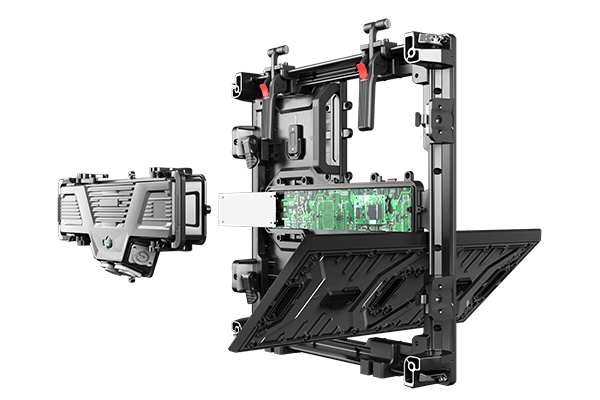

Front and rear maintenance
Support front and rear dual maintenance, plug-in system box, simple operation, quick installation and maintenance, truly saving time and effort.
Applications
Applied to large-scale events and performances, exhibitions, shopping malls, company events, new product launches, high-end forums, academic conferences, wedding ceremonies and other fields that require high-definition display and fast installation.
Ceremony
Exhibition
New product launch
Concert
Technical Parameters
Contact us for detailed parameters.
| Model | SD2.604 | SD2.976 | SD3.91 | SD4.81 |
| Pixel Pitch | 2.604mm | 2.976mm | 3.91mm | 4.81mm |
| Module Size | 250*250mm | |||
| Module Resolution (dot) | 96*96 | 84*84 | 64*64 | 52*52 |
| Cabinet Size | 500*500mm/500*1000mm | |||
| Cabinet Resolution (dot) | 192*192/192*384 | 168*168/168*336 | 128*128/128*256 | 104*104/104*208 |
| Maintenance Method | Front and rear maintenance | |||
