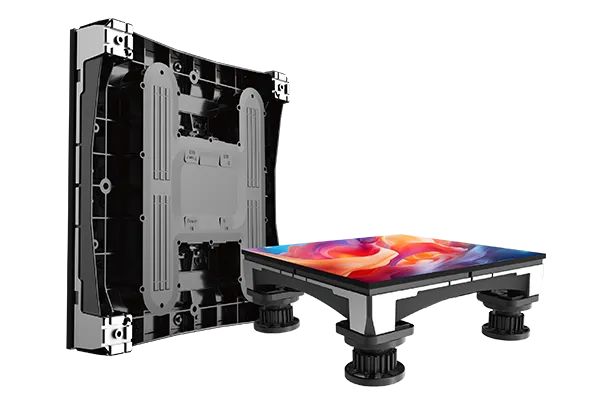

GD-DOB Series Interactive Floor LED Display
- Indoor: P1.25 P1.524 P1.83 P1.95 P2.5 P2.6 P2.976 P3.91
- Module Size: 249.85*249.85mm
- Cabinet size: 500*500mm
- Meiyad GD-DOB Series Interactive Floor LED Display features a durable die-casting aluminum cabinet, DOB triple-layer encapsulation protection, front maintenance, and intelligent interaction. Supporting XR creative applications, it creates a safe, stable, and immersive display experience.

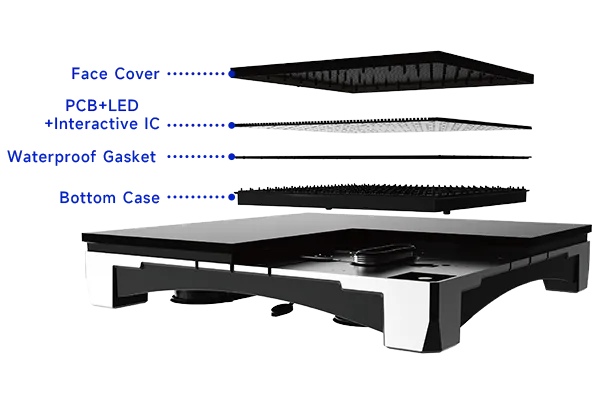

Advanced DOB Encapsulation with Triple Protection
Adopting advanced DOB encapsulation technology, the display integrates a three-layer protection structure consisting of a protective layer, cushioning soft layer, and functional layer. This design enhances impact resistance, waterproof performance, dust protection, and overall reliability, extending the product lifespan.

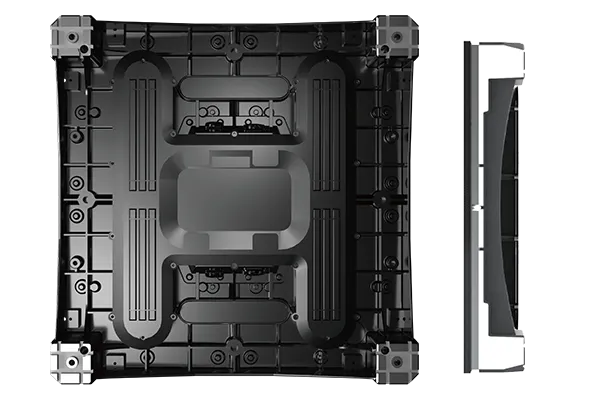

High-Strength Die-Casting Aluminum Cabinet
Featuring a standard 500×500mm die-casting aluminum cabinet, the GD-DOB series offers a robust and stable structure with excellent load-bearing capacity and durability. It is designed to withstand frequent foot traffic and demanding application environments.

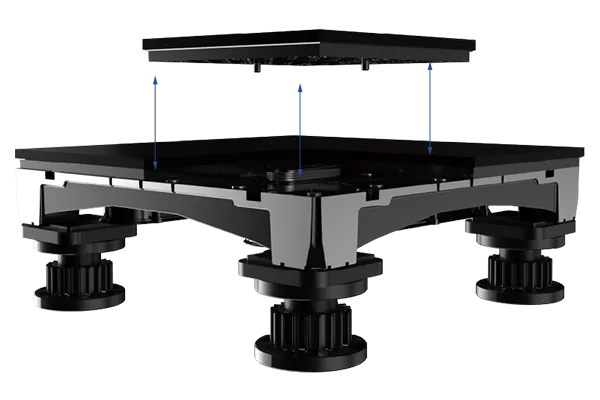

Front Maintenance Module Design
The modular front maintenance design enables quick installation, easy adjustment, and convenient maintenance, improving project efficiency while reducing operation and maintenance costs.

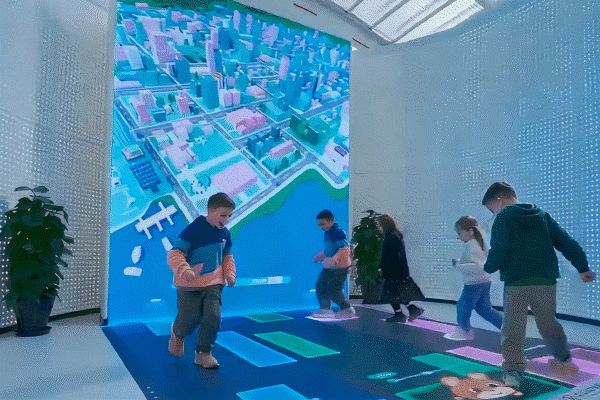

Intelligent Interactive Experience
Built-in interactive sensing chips can work with the control system to enable interactive floor display applications. It supports human-screen interaction, interactive games, and other innovative scenarios, creating an immersive digital experience.

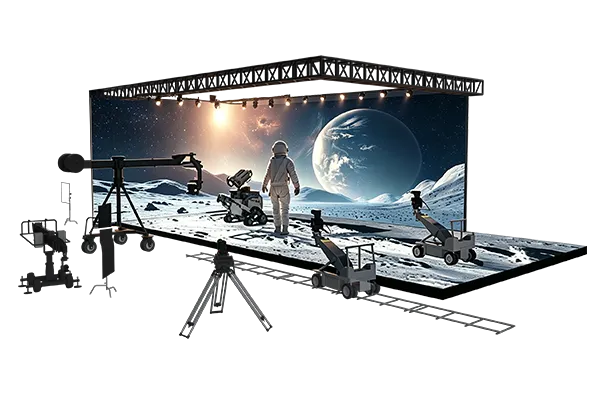

Flexible XR Creative Display Applications
Supporting XR display modes, the GD-DOB series can be configured into various creative structures, including multi-fold screens, curved screens, and U-shaped screens. It is ideal for high-end visual applications such as exhibition halls, broadcasting studios, stage performances, and digital cultural tourism projects.
Applications
Ideal for shopping malls, commercial plazas, exhibition halls, stages, theme parks, retail stores, hotels, convention centers, and interactive entertainment venues. With high load capacity, intelligent interactivity, and immersive visuals, Meiyad LED Floor Displays deliver safe, reliable, and engaging interactive experiences.
Hotel
Shopping Center
Technical Parameters
Contact us for detailed parameters.
| Application | Indoor | |||||||
| Model | P1.25 | P1.524 | P1.83 | P1.95 | P2.5 | P2.6 | P2.976 | P3.91 |
| Cabinet Resolution | 400x400 | 328x328 | 272x272 | 256x256 | 200x200 | 192x192 | 168x168 | 128x128 |
| Module Size (W×H×D/mm) | 249.85x249.85x19 | |||||||
| Cabinet Size (W×H×D/mm) | 500x500x89 | 500x500x87.5 | 500x500x89 | |||||
| Cabinet Weight (kg) | ≈11.1 | |||||||
| Brightness (nit) | ≥600 | 600~900 | ||||||
| Refresh Rate (Hz) | 1920-7680Hz (optional) | |||||||
| Max. Power Consumption (w/㎡) | 400 | |||||||
