Full Color Indoor LED Display Module
- 320*160mm：P1.25 P1.538 P1.86 P2 P2.5 P3.076 P4 P5
- 256*256mm：P4 P4.74
- 256*128mm：P4
- 192*192mm：P3 P3.55 P6
- 160*160mm：P2.5
- 128*128mm：P4

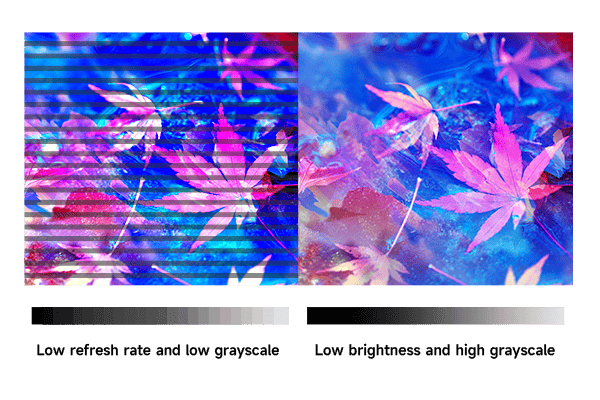

Low Brightness And High Grayscale
High grayscale level, wide color gamut, the picture display is real and delicate, the colors are brilliant, and the color is restored.
Ultra-wide Viewing Angle
160° ultra-wide viewing angle, unobstructed viewing up, down, left, and right, no reflection, no color difference.

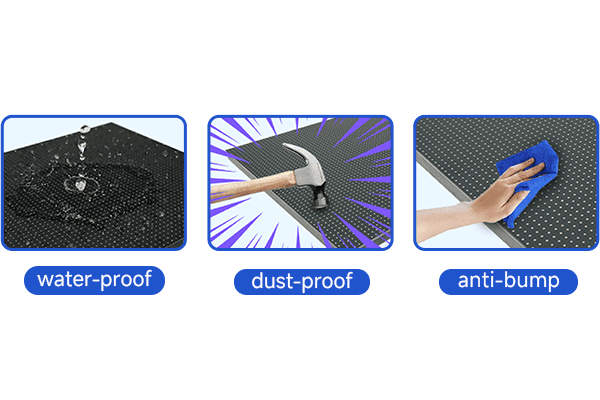

GOB Technology For Option
GOB technology is water-proof, dust-proof and anti-bump.
3840Hz Refresh Rate
3840Hz ultra-high refresh rate, no flickering in photos, higher definition, better viewing experience.

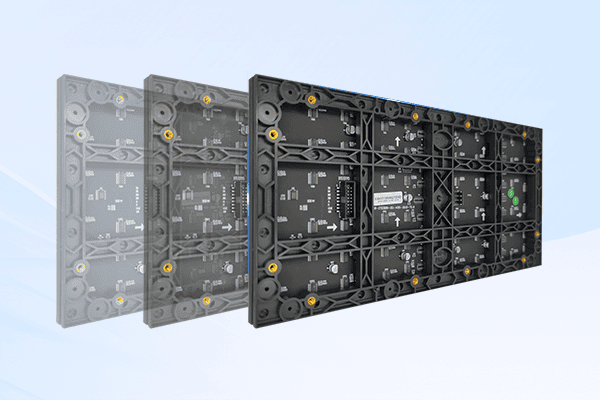

High Flatness
The module bottom shell has high flatness, high strength and is not easy to deform.
Applications
Full Color indoor LED Display Modules are widely used in auditoriums, conference rooms, banquets, lobby, exhibition demonstrations, transportation, studios, command monitoring and other fields.

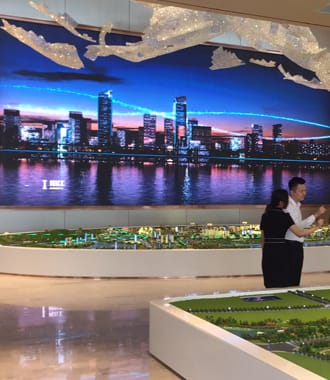

Real estate

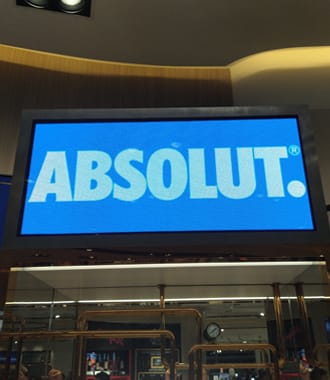

Airport

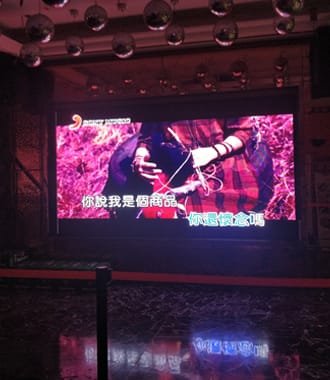

KTV club

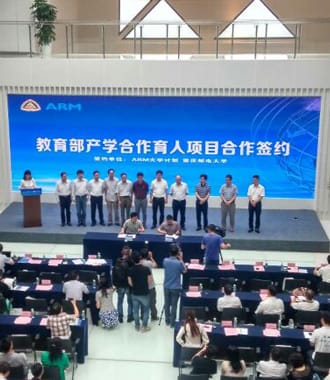

School multi-purpose hall
Technical Parameters
Contact us for detailed parameters.
| Pixel Pitch | 1.25mm | 1.538mm | 1.86mm | 2mm | 2.5mm | 2.5mm | 3.076mm | 4mm | 5mm |
| Module Size | 320*160mm | ||||||||
| Scan Mode | 64S | 52S | 43S | 40S | 32S | 64S | 26S | 20S | 16S |
| Module Resolution (dot) | 256*128 | 208*104 | 172*86 | 160*80 | 128*64 | 128*64 | 104*52 | 80*40 | 64*32 |
| Pixel Pitch | 4mm | 4.74mm | 4mm | 3mm | 3.55mm | 6mm | 2.5mm | 4mm |
| Module Size | 256*256mm | 256*128mm | 192*192mm | 160*160mm | 128*128mm | |||
| Scan Mode | 32S | 27S | 32S | 64S | 27S | 8S | 32S | 32S |
| Module Resolution (dot) | 64*64 | 54*54 | 64*32 | 64*64 | 54*54 | 32*32 | 64*64 | 32*32 |
