SP Series Rental LED Screen Cabinet Operation Guide: Assembly, Curving, and Maintenance

SP Series Rental LED Screen Cabinet Operation Guide: Assembly, Curving, and Maintenance

27
09
2026

Rental LED screens are widely used for concerts, exhibitions, conferences, stage performances, and other live events. Efficient cabinet assembly, flexible screen configuration, and convenient maintenance are essential for ensuring smooth installation and reliable operation.


The SP Series rental LED screen cabinets support different assembly configurations, including flexible cabinets, standard cabinets, angled cabinets, and 500 × 1000 mm cabinets. With their cabinet locking mechanisms and adjustable curvature locks, users can assemble LED screens to meet different event and stage design requirements.

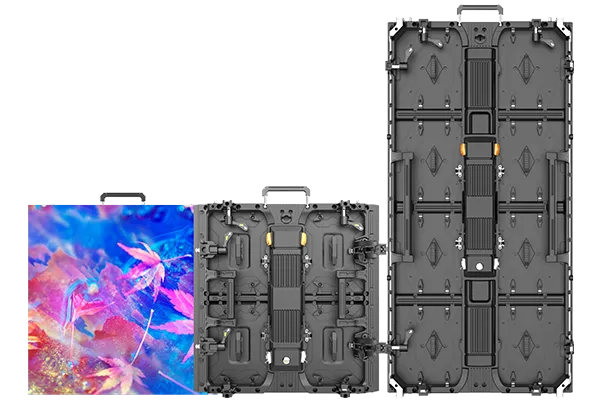

SP Series Rental LED Screen


This guide provides step-by-step instructions for bending flexible cabinets, connecting different cabinet types, adjusting curvature locks, creating inward and outward curves, and performing LED module and power supply maintenance.



How to Bend a Flexible Rental LED Screen Cabinet


Flexible LED cabinets allow users to create curved rental LED screens for stage backdrops, exhibitions, and other event applications.

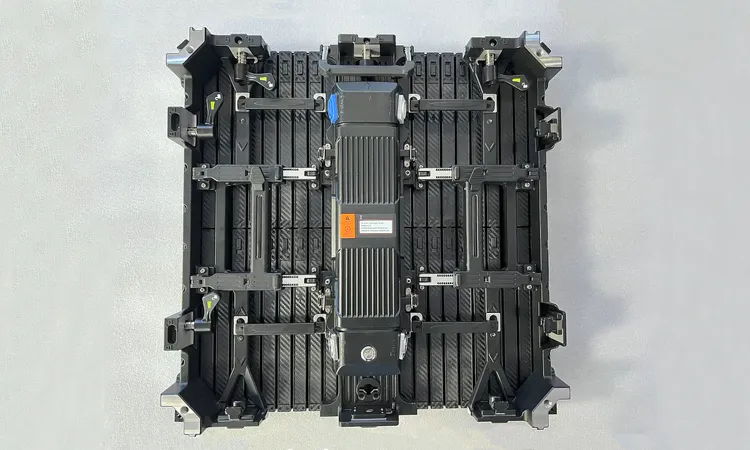

SP Series Rental Flexible Cabinet


Follow these steps to bend a flexible cabinet:


1. Remove the cabinet locking clips before bending.

2. Hold the cabinet handles firmly with both hands.

3. Press the spring tabs at the upper ends of the handles.

4. Carefully bend the cabinet to form the desired curved shape.

5. Observe the graduated scale next to the spring tabs while bending.

6. Use the scale readings to control the cabinet's curvature.

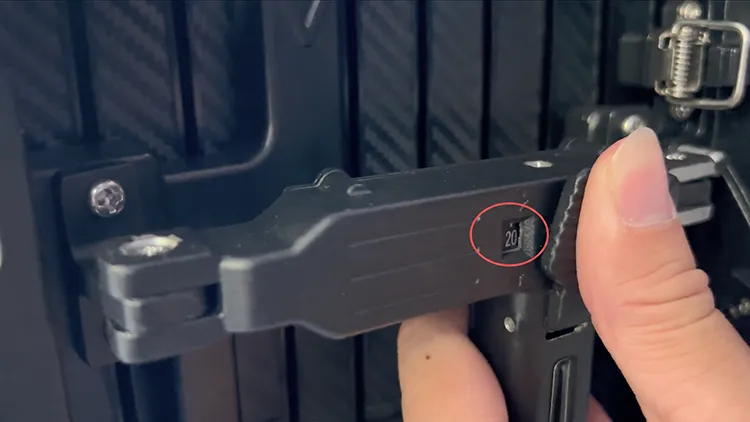

Pay close attention to the scale during adjustment to achieve the desired bending angle.


Pay close attention to the scale during adjustment to achieve the desired bending angle



How to Connect Flexible LED Cabinets


Proper alignment is important when connecting flexible cabinets to build a rental LED wall. The cabinets can be connected horizontally and vertically.


Horizontal Cabinet Connection


  • Bring the side edges of the cabinets close together.

  • Align the cabinet edges and ensure that the display surfaces are level and flush.

  • Insert the side locking pins into the corresponding locking holes.

  • Press the handles to secure the locking mechanism.

  • Lock the lower locking mechanism as well.

  • Check the cabinet alignment and adjust the position as needed.

  • Insert and secure the locking pins completely.

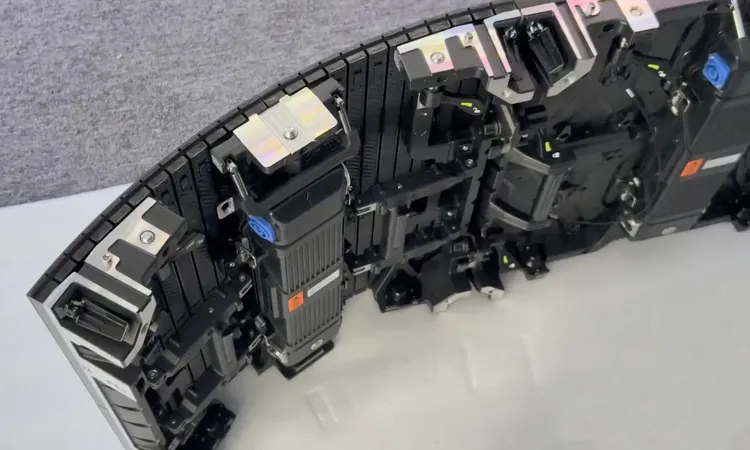

rental flexible cabinet Horizontal connection


Repeat these steps when connecting additional cabinets. Check the surface alignment throughout the assembly process to maintain a consistent display plane.


Vertical Cabinet Connection


When connecting flexible cabinets vertically, follow these steps:


1. Position the upper cabinet above the lower cabinet.

2. Align the locating holes on the bottom of the upper cabinet with the locating pins on the top of the lower cabinet.

3. Lower the cabinet so that the locating pins fit into the corresponding holes.

4. Insert all three locking pins.

5. Secure all three pins and check that the cabinets are firmly connected.

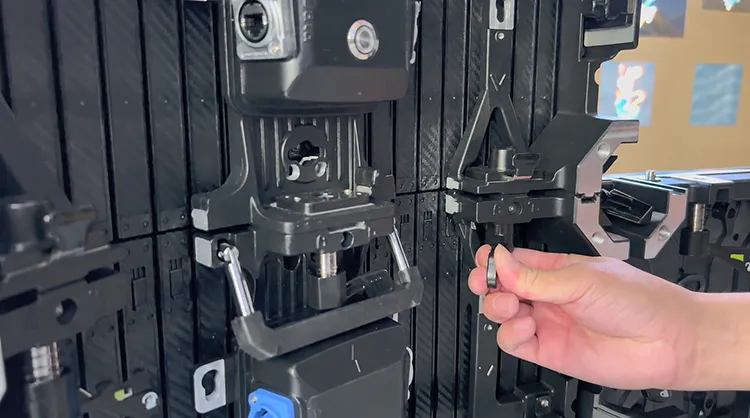

rental flexible cabinet vertical connection


Ensure that the locating pins are correctly aligned and all three locking pins are fully secured before continuing the installation.



How to Connect Standard Rental LED Cabinets


Standard LED cabinets are suitable for assembling flat rental LED screens for concerts, exhibitions, conferences, and other event applications.

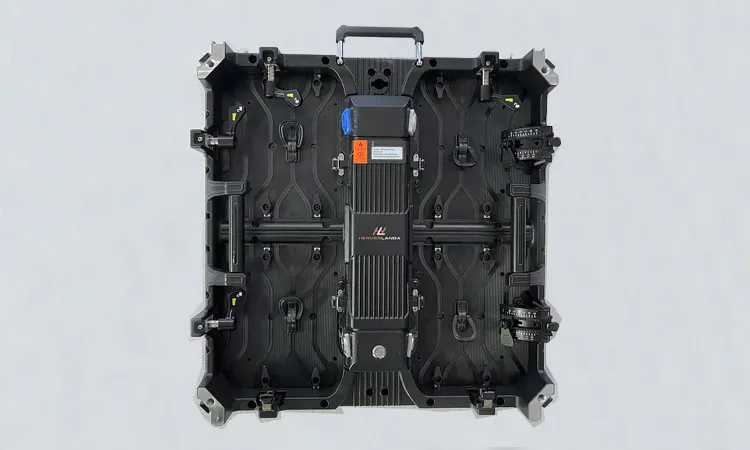

SP Series Rental Standard Cabinet


Follow these steps to connect standard cabinets:


1. Bring the side edges of the cabinets close together.

2. Align the cabinets and ensure that the display surfaces remain level.

3. Insert the locking pins into the corresponding locking holes.

4. Secure the locking pins.

5. Check that the cabinets are properly aligned and firmly connected.


Repeat the process for the remaining cabinets to complete the rental LED display.



How to Adjust the Curvature Lock


The curvature lock is used to adjust and secure the cabinet angle when creating curved LED screen configurations.


Follow these steps to adjust the curvature lock:


1. Open the operating lever on the curvature lock.

2. Check the graduated scale and adjust the curvature to the desired setting.

3. Press the lever downward to lock the curvature setting.

4. Check the two curvature locks on the side of the cabinet.

5. Adjust both locks to matching angles according to the scale.

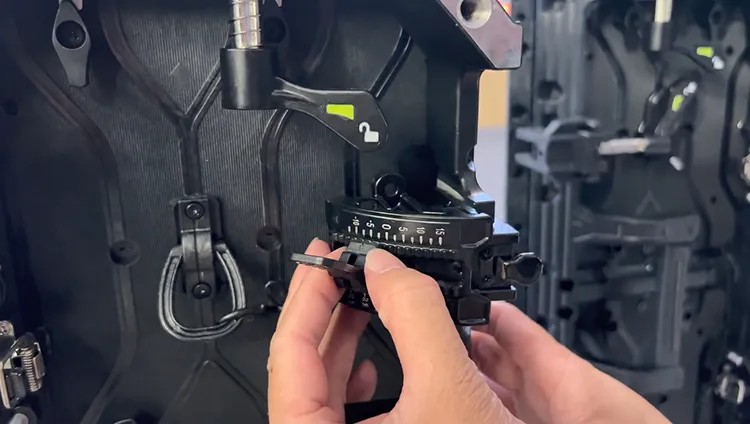

How to Adjust the Curvature Lock


Ensure that the two curvature locks have consistent settings before proceeding with cabinet assembly.



How to Create Inward and Outward Curved LED Screens


By adjusting the curvature locks to different scale settings, users can create inward-bending or outward-bending configurations during cabinet assembly.


Inward-Bending Cabinet Connection


To create an inward-bending configuration:


1. Adjust the curvature locks to the required negative scale setting.

2. Bring the cabinet sides together.

3. Align the cabinets and connect them using the designated locking mechanism.

4. Secure the locking pins.

5. Check the resulting screen curvature.

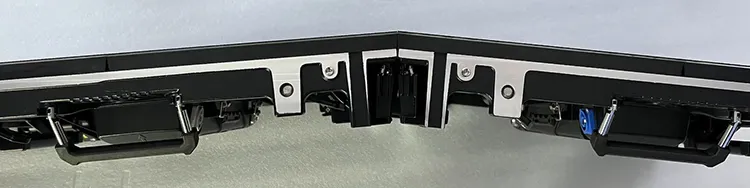

Inward Bending Cabinet Connection


The negative scale setting allows the cabinets to be connected in an inward-bending configuration, as demonstrated in the operation video.


Outward-Bending Cabinet Connection


To create an outward-bending configuration:


1. Adjust the curvature locks to the required positive scale setting.

2. Bring the cabinet sides together.

3. Align the cabinets and connect them using the designated locking mechanism.

4. Secure the locking pins.

5. Check the resulting screen curvature.

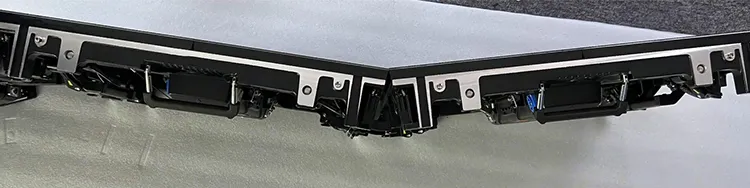

Outward Bending Cabinet Connection


The positive scale setting allows the cabinets to be connected in an outward-bending configuration, as demonstrated in the operation video.


Always refer to the scale markings on the actual cabinet when adjusting the curvature.


How to Connect 45° Rental LED Cabinets


SP Series 45° rental LED cabinets support two connection methods: flat screen assembly and 90-degree corner screen assembly. The key difference is whether the curvature lock is retained or removed.

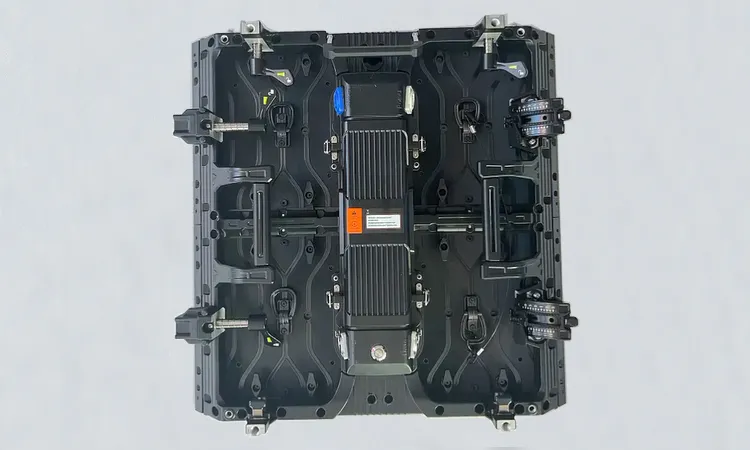

SP Series 45° Rental LED Cabinet


Connecting 45° Cabinets to Create a Flat LED Screen


To connect 45° cabinets into a flat rental LED screen, do not remove the curvature lock. Follow these steps:


- Bring the side edges of the cabinets to be connected close together.

- Align the cabinets and ensure that the display surfaces remain flat and level.

- Keep the curvature lock in place.

- Insert the locking pins into the corresponding locking holes.

- Secure the locking pins firmly.

- Check that the cabinets are properly aligned and form a flat display surface.

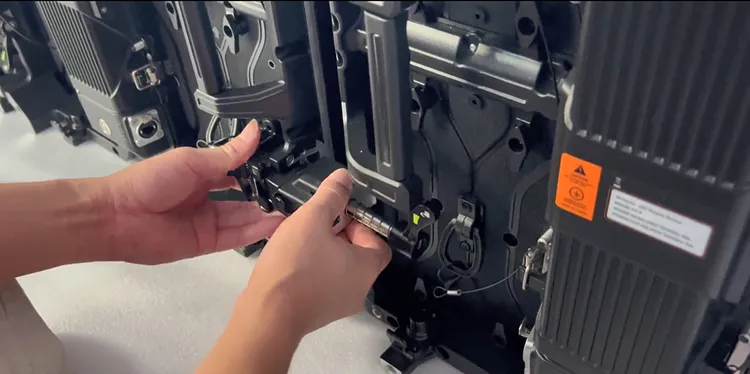

Connecting 45° Cabinets to Create a Flat LED Screen


This method allows 45° rental LED cabinets to be connected to create a flat LED screen.


Connecting 45° Cabinets to Create a 90-Degree Corner LED Screen


To create a 90-degree corner in a rental LED wall, remove the curvature lock before connecting the cabinets. Follow these steps:


- Remove the curvature lock from the cabinet.

- Bring the angled sides of the cabinets together.

- Align the cabinets so that the angled edges fit closely together to form a 90-degree corner.

- Insert the locking pins into the corresponding locking holes.

- Secure the locking pins firmly.

- Check that the cabinets are securely connected and the corner is properly aligned.

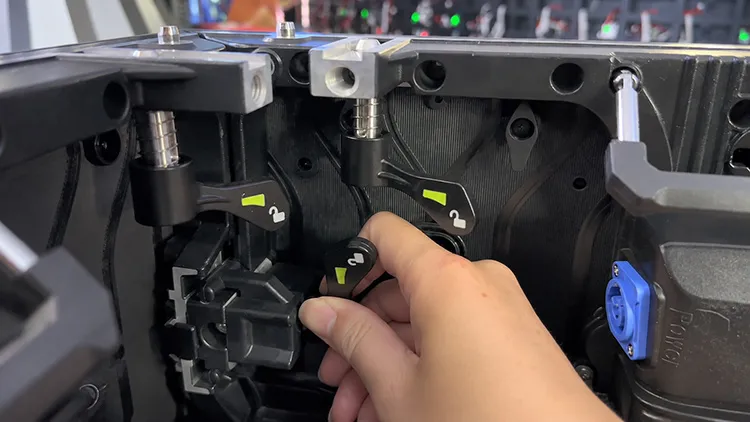

Connecting 45° Cabinets to Create a 90-Degree Corner LED Screen


This method allows SP Series 45° rental LED cabinets to form a 90-degree corner screen for stage designs, exhibitions, and other event applications.


Important: The two connection methods serve different purposes. Keep the curvature lock installed when assembling a flat screen, and remove it when creating a 90-degree corner screen. Always ensure that all locking pins are fully secured before use.



How to Connect 500 × 1000 mm Rental LED Cabinets


The SP Series also includes 500 × 1000 mm LED cabinets for building rental LED screens in different sizes and configurations.


Follow these steps to connect the cabinets:


1. Adjust the curvature lock to the required angle.

2. Bring the side edges of the cabinets close together.

3. Align the cabinets and ensure that the display surfaces remain level.

4. Insert the locking pins into the corresponding locking holes.

5. Secure both locking pins on the side of the cabinet.


Once both side locking pins are fully secured, the cabinets can be connected as required to assemble the rental LED display.

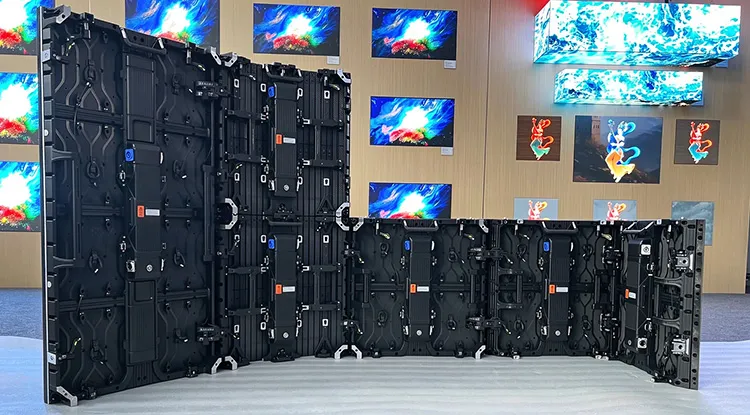

Various rental cabinets support mixed configurations



Rear Maintenance: Removing and Installing an LED Module


Rear maintenance allows technicians to remove and reinstall LED modules from the back of the rental LED screen cabinet.


Removing an LED Module from the Rear


1. Rotate open the locking plates along the upper and lower edges of the module.

2. Hold the module handle and push the module forward to release it from its mounting position.

3. Tilt the module and guide it out through the designated opening.

4. Disconnect the safety cord.

5. Remove the module.

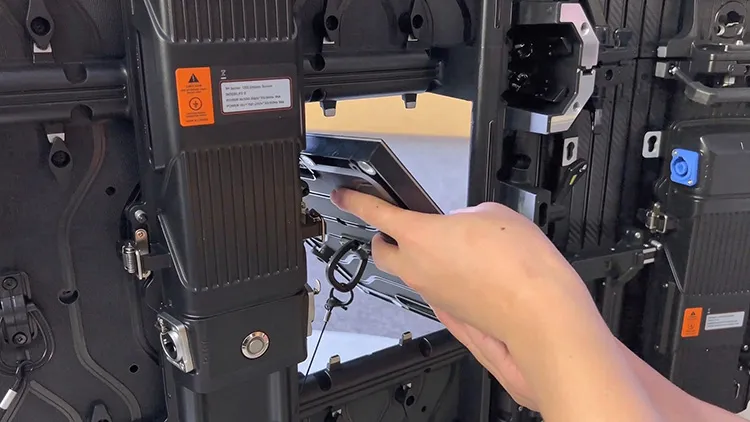

Rear Maintenance


Installing an LED Module from the Rear


1. Attach the safety cord first.

2. Guide the module through the designated opening.

3. Hold the handle and align the module with its installation position.

4. Pull the module backward into the cabinet.

5. Secure all the module locking levers.

6. Check that the module is correctly positioned and firmly locked.


The rear maintenance procedure is complete once the module is securely installed.



Front Maintenance: Removing and Installing an LED Module


Front maintenance allows technicians to access an LED module from the front of the rental LED panel.


Removing an LED Module from the Front


1. Rotate open the locking levers along the upper and lower edges of the module.

2. Use a compatible suction tool to remove the module from the front.

3. Disconnect the safety cord.

4. Remove the module carefully.

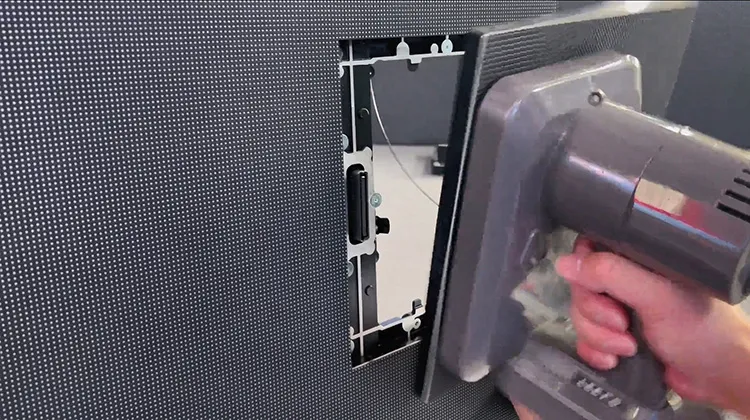

Front Maintenance


Installing an LED Module from the Front


1. Attach the safety cord before installation.

2. Align the module with its designated mounting position.

3. Position the module directly against the cabinet.

4. Ensure that the module is correctly seated.


The front maintenance procedure is complete once the module is installed in the correct position.

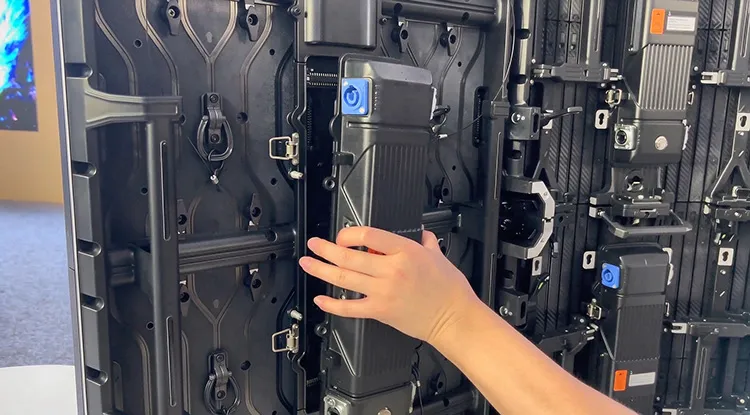

Power Supply Maintenance: Removing and Installing the Power Supply Box


Proper power supply maintenance helps technicians service the rental LED display cabinet when necessary.


Removing the Power Supply Box


1. Disconnect the power and follow the appropriate electrical safety procedures.

2. Open the locking clips on both sides of the power supply box.

3. Remove the power supply box from the cabinet.


Installing the Power Supply Box


1. Ensure that the power is disconnected.

2. Align the power supply box with the corresponding interface.

3. Press the box firmly into place until it is fully seated.

4. Secure the locking clips on both sides.

5. Check that the power supply box is correctly installed and both locking clips are secured.


Complete the required inspection before reconnecting power.


Power Supply Maintenance



Practical Tips for Rental LED Screen Assembly and Maintenance


To help ensure efficient installation and reliable operation, keep the following points in mind when working with SP Series rental LED screens.


Check cabinet alignment. Ensure that adjacent cabinets are properly aligned and that their display surfaces remain level.

Secure all locking mechanisms. Check the locking pins, lower locks, and other designated connection points during assembly.

Monitor the curvature scale. When bending flexible cabinets or adjusting curvature locks, use the scale readings to control the setting.

Check both curvature locks. Ensure that the two locks on the side of the cabinet are adjusted to matching angles.

Handle LED modules carefully. Follow the specified removal and installation procedures when performing front or rear maintenance.

Observe electrical safety procedures. Disconnect the power before removing or installing the power supply box.

Refer to the operation video. Use the accompanying video as a visual reference for cabinet assembly, curvature adjustment, and maintenance procedures.



Conclusion


The SP Series rental LED screen cabinets provide flexible options for assembling LED displays for concerts, exhibitions, conferences, and other live events. Understanding the correct cabinet connection methods, curvature lock adjustments, and module maintenance procedures helps technicians work more efficiently during installation and servicing.


Whether you are building a flat rental LED screen, an inward-bending or outward-bending display, or a right-angle LED wall, following the correct operating procedures is essential for achieving proper cabinet alignment and reliable connections.


For more information about SP Series rental LED displays and professional event LED screen solutions, contact our team to discuss your project requirements.
