Meiyad LED Display Modules: A Comprehensive Overview

2024

In the dynamic world of LED display technology, Meiyad stands out as a prominent leader, renowned for its expertise and innovation in manufacturing LED display modules. With 14 years of experience and a robust production infrastructure, Meiyad has established itself as a top-tier provider of flexible and high-quality LED solutions. This article delves into Meiyad’s diverse range of LED display modules, their unique offerings, and the company's impressive capabilities and achievements.

Meiyad Indoor LED Display Modules

Meiyad offers a variety of

indoor LED modules

designed to meet diverse needs, from small-scale installations to larger, more intricate setups. The indoor modules are available in several sizes and pixel pitches:

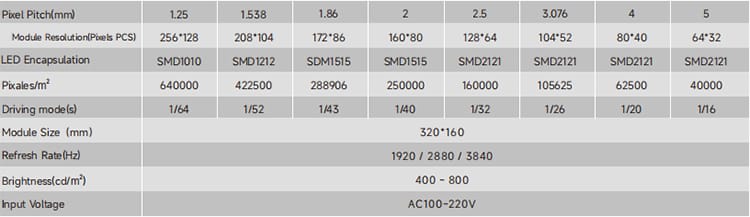

1. 320 x 160 mm Modules:

Pixel Pitches
: P1.25, P1.538, P1.86, P2, P2.5, P3.076, P4, P5
Applications
: Ideal for high-resolution displays where close viewing distances are required, such as in conference rooms, shopping malls, and control centers.

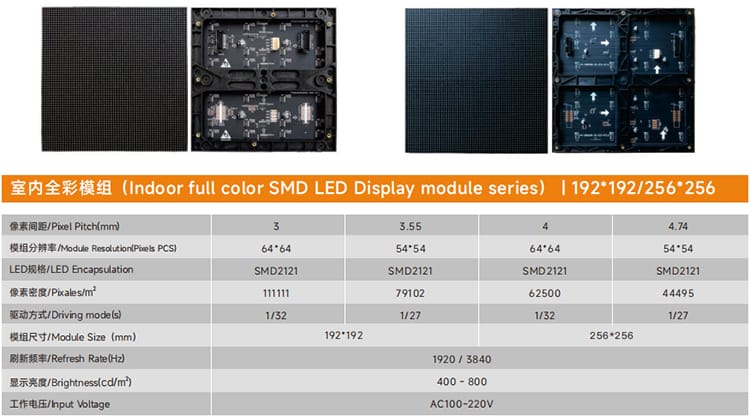

2. 256 x 256 mm Modules:

Pixel Pitches
:P4, P4.74
Applications
: Suitable for indoor installations, including retail environments and indoor sports arenas.

3. 192 x 192 mm Modules:

Pixel Pitches
: P3, P3.55
Applications
: Perfect for indoor screens where high image quality is still essential.

Meiyad Outdoor LED Display Modules

For outdoor applications, Meiyad provides rugged and high-performance

outdoor LED modules

that withstand environmental conditions while delivering excellent visibility:

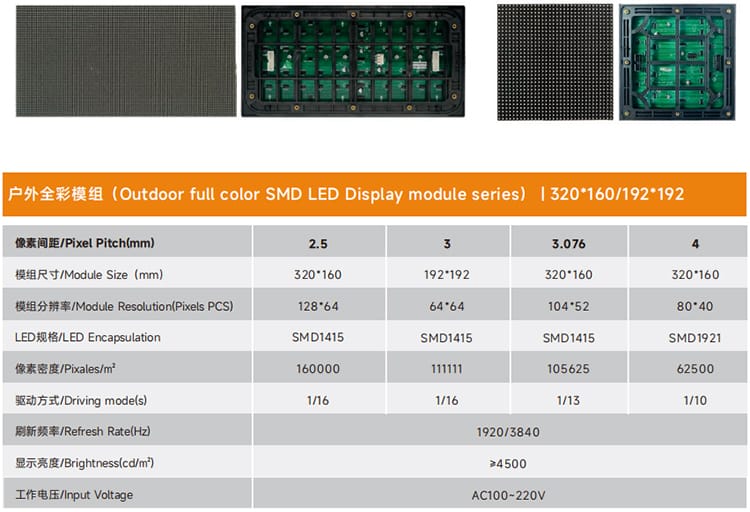

1. 320 x 160 mm Modules:

Pixel Pitches
: P2.5, P3.076, P4, P5, P8, P10
Applications
: These modules are versatile and can be used in various outdoor settings, including advertising billboards, sports stadiums, and public transportation information boards.

2. 192 x 192 mm Modules:

Pixel Pitches: P3, P6
Applications: Suitable for outdoor displays where high resolution is needed, such as in retail signage and outdoor event screens.

Packaging Options

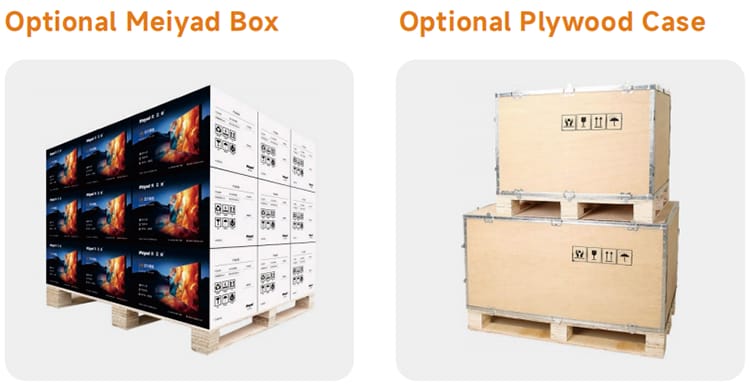

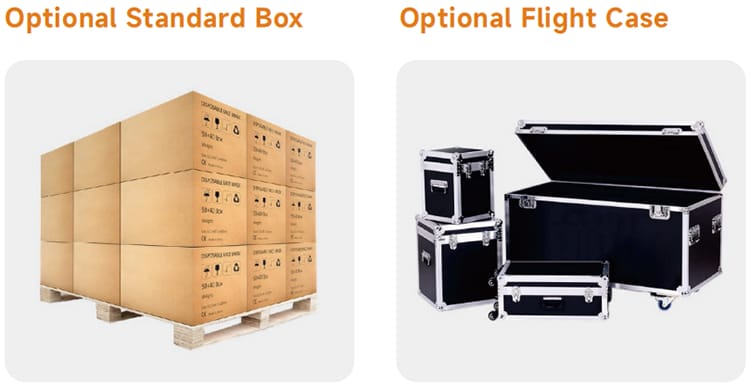

Meiyad understands the importance of safe and efficient transportation of LED modules. To accommodate different needs, the company offers four packaging options:

Meiyad Box
Standard Box
Plywood Case
Flight Case

These options ensure that modules are protected during transit and storage, catering to various levels of durability and handling requirements.

Why Choose Meiyad?

1. Proven Expertise

: With 14 years of experience, Meiyad has become a leader in the LED display module industry, particularly known for its flexible modules and innovative solutions.

2. Extensive Production Capacity

: Meiyad operates five major production factories, covering an impressive 360,000 square meters and employing over 2,000 staff members. This extensive infrastructure supports significant production capacity and efficiency.

3. Global Reach

: Meiyad has successfully completed over 30,000 projects in more than 100 countries, showcasing its ability to deliver quality products worldwide.

4. Quality Assurance

: All Meiyad products adhere to a complete Quality Management System Certification, ensuring compliance with international standards and each country’s regulations.

5. Industry Collaboration

: The company has partnered with numerous top-tier listed companies, reflecting its strong industry reputation and capability.

6. Diverse Product Range

: Meiyad offers a comprehensive range of LED display modules, including single-color and full-color modules, providing cost-effective solutions for various applications.

7. Specialized Customization

: The company excels in delivering customized solutions for

special-shaped

projects, catering to unique and complex requirements.

Conclusion

Meiyad's LED display modules are a testament to the company's commitment to quality, innovation, and customer satisfaction. With a broad range of indoor and outdoor modules, various packaging options, and a wealth of industry experience, Meiyad is well-equipped to meet the diverse needs of its global clientele. As the LED display market continues to evolve, Meiyad remains at the forefront, driving advancements and setting new standards in visual display technology.
