"Genius" in LED Display-Creative LED Screen

2018

In modern society, you are not afraid of being different from others, and you are afraid that you will have a "Popface". Today, I will share with you the "Genius" in the LED display - the creative led screen.

The creative LED screen, also known as the special-shaped LED screen, has a stronger visual impact than the traditional LED display screen. It breaks the limitation of the regular shape of the traditional LED display screen, and is different from the rectangular shape and the flat plate shape of the conventional LED display screen, appearing by various special shape. Compared with the traditional LED display, its biggest feature is that it can better adapt to the overall structure and environment of the building, and the size and dimension of the LED screen can be customized according to requirements. It can be said that the shaped screen is based on the traditional LED display screen to transform various shapes to present different effects, making it more novel and unique in appearance.

In the past, shaped LED screens were assembled by traditional rectangular flat modules or edging. The most common shaped LED screens are large curved curved screens and flat circular screens. At present, Meiyad has specially developed various shaped modules such as triangle, trapezoid, circle, parallelogram, etc, which can be combined into wave LED screen, donut LED screen, curved LED screen, circular LED screen, conical LED screen, spherical LED screen, rhombus LED screen, diamond LED display, and other shapes, regular or irregular geometric LED displays. Below we will share some small cases of creative LED screens.

Specification description:

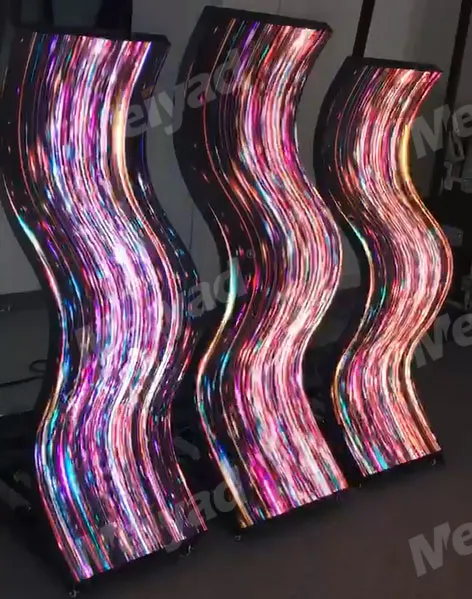

1) Wave LED display P2.5 / P3 / P4

Wave LED display P2.5 / P3 / P4

LED module model: P2.5 / P3 / P4

Flexible module size: P2.5/P3 240*120mm P4 256*128mm

Cabinet size: P2.5/P3 480*1680mm P4 512*1792mm

Cabinet Type: sealed steel cabinet

Flexible LED module QTY of single cabinet: 34 pcs

Controlling System: Asynchronous controlling

Power supply QTY of single cabinet: 4pcs

Receving card QTY of single cabinet: 4pcs

Sending card QTY of single cabinet: 1pcs

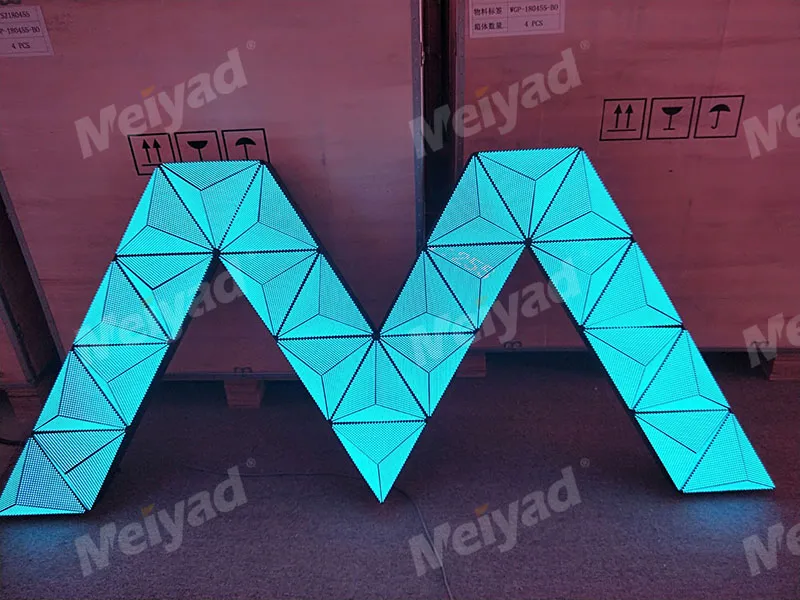

2) M-shaped LED display P5

M-shaped LED display P5

Triangle LED module model: P5

Triangle module size: 160*160mm

Cabinet size: 967*837*80mm, 1088*837*80mm

Cabinet Type: V shaped sealed steel cabinet

Triangle LED module QTY of single cabinet: 83 pcs

Controlling System: Asynchronous controlling

Power supply QTY of single cabinet: 4pcs

Receiving card QTY of single cabinet: 4pcs

Sending card QTY of single cabinet: 1pcs

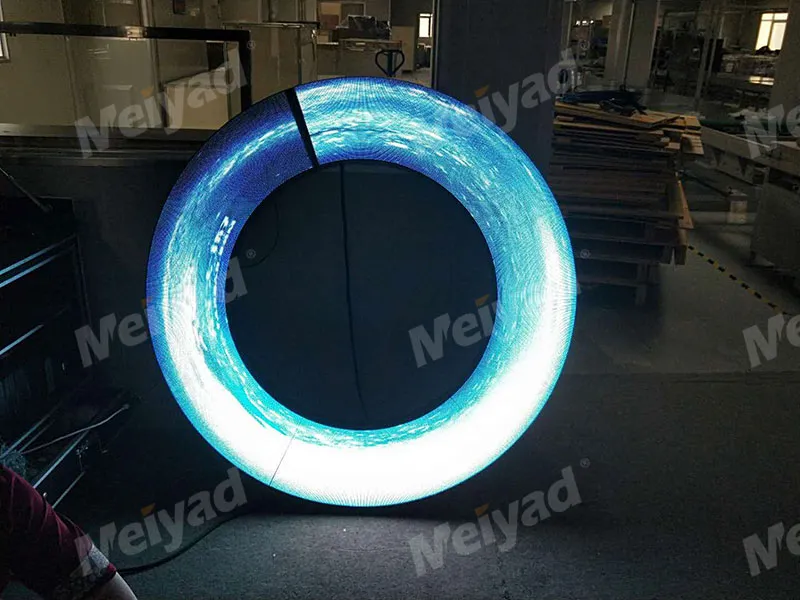

3) Donut LED display P4

Donut LED display P4

Sector LED module model: P4

Sector module size: 232.6*258*258*247.9mm

Cabinet size: 1307*100mm

Cabinet Type: simple steel cabinet

Sector LED module QTY of single cabinet: 16 pcs

Controlling System: Asynchronous controlling

Power supply QTY of single cabinet: 6pcs

Receiving card QTY of single cabinet: 3pcs

Sending card QTY of single cabinet: 1pcs

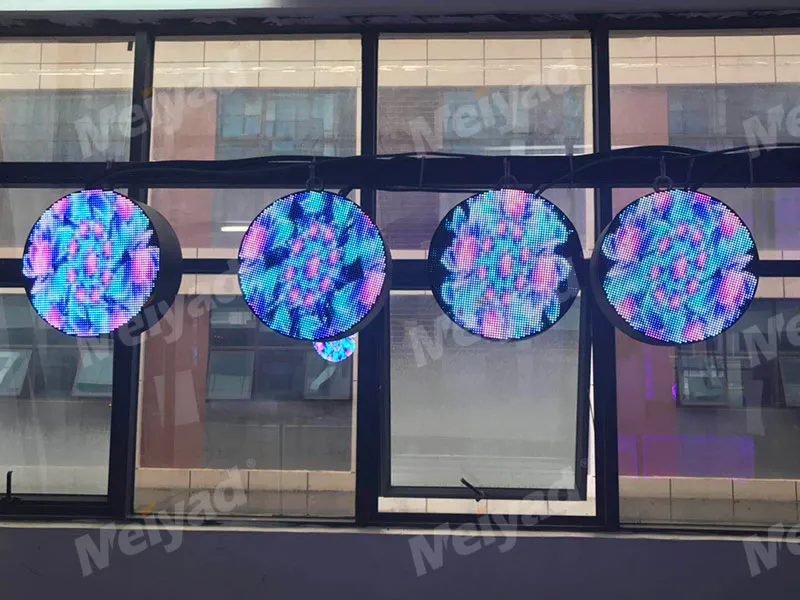

4) Mini Circular LED display P4

Mini Circular LED display P4

Circular LED module model: P4

Circular module size: 256*256mm

Cabinet size: 256*256mm

Cabinet Type: simple steel cabinet

Circular LED module QTY of single cabinet: 2 pcs

Controlling System: Asynchronous controlling

Power supply QTY of single cabinet: 1pcs

Control card QTY of single cabinet: 1pcs

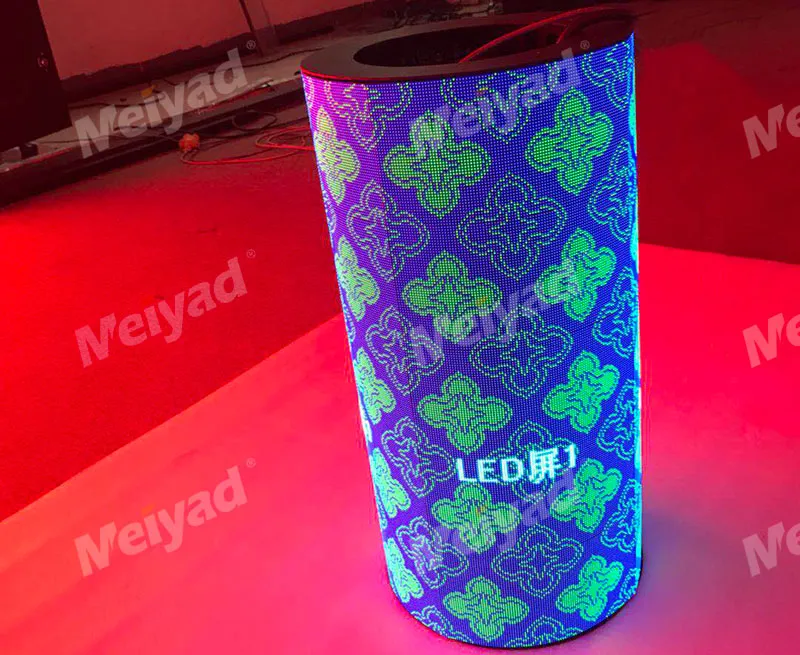

5) Mini cylinder LED display p2.5

Mini cylinder LED display p2.5

Flexible LED module model: P2.5

Flexible module size: 240*120mm

Cabinet size: 960*600mm

Cabinet Type: simple steel cabinet

Flexible LED module QTY of single cabinet: 20 pcs

Controlling System: Asynchronous controlling

Power supply QTY of single cabinet : 2pcs

Sending box QTY of single cabinet : 1pcs

Receiving card QTY of single cabinet: 4pcs

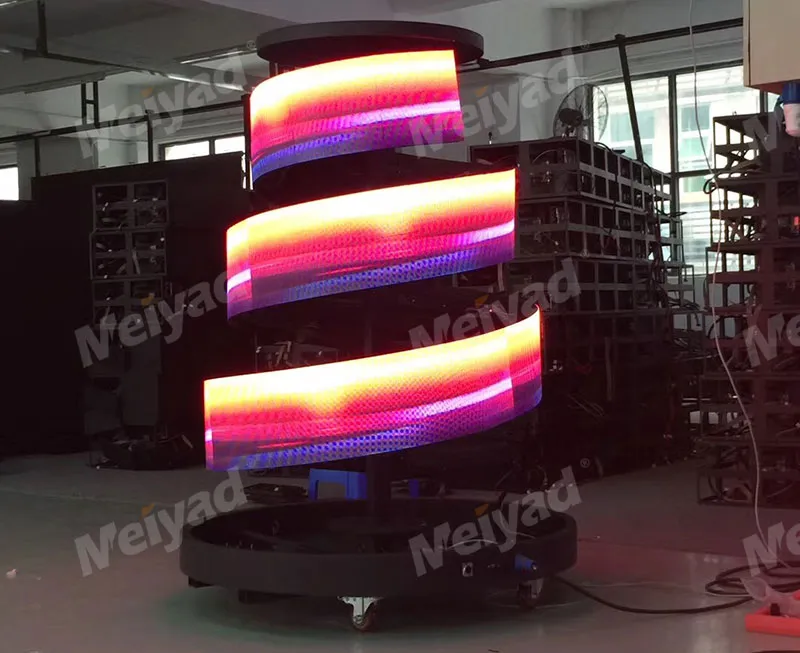

6) Christmas tree LED display P2.5

Christmas tree LED display P2.5

Flexible LED module model: P2.5

Flexible module size: 240*120mm

Cabinet size: 1500*1500*2380.5mm

Cabinet Type: simple steel cabinet

Flexible LED module QTY of single cabinet: 84pcs

Controlling System: Asynchronous controlling

Power supply QTY of single cabinet: 11pcs

Sending card QTY of single cabinet: 1pcs

Receving card QTY of single cabinet: 11pcs

We will continue to share new cases of creative LED display in the future. The reason why there are so many excellent creative LED screen cases is that we have a skilled R&D team and thank them for their strength in these cases. Because the shaped LED screens have different appearances and different structures, the technical requirements for us become extremely strict.

If our technology is not good enough, the LED screens that are spliced will inevitably have many problems such as uneven seams and uneven appearance of the stitching surface, which will affect the viewing effect and undermine the aesthetics of the overall design. More importantly, the design of the circuit and structure of the LED shaped screen is complicated, and the installation difficulty is relatively high, which puts higher requirements on our research and development capability and installation accuracy.

Therefore, this objectively caused the technology of the special-shaped LED screen to be only in the hands of a few manufacturers, which can be said to be an important symbol of the comprehensive strength of Meiyad company. We will continue to make more creative LED screen projects to bring you unexpected vision and experience.
