Meiyad Indoor Flexible LED Modules

2024

In the competitive realm of flexible LED displays, the Meiyad Indoor Flexible LED Module has carved out a notable reputation as a leader in the mid-to-high-end market. With eight years of experience and a track record of eight technological innovations, Meiyad has consistently pushed the boundaries of display technology, offering products that blend versatility, performance, and creativity.

Key Features

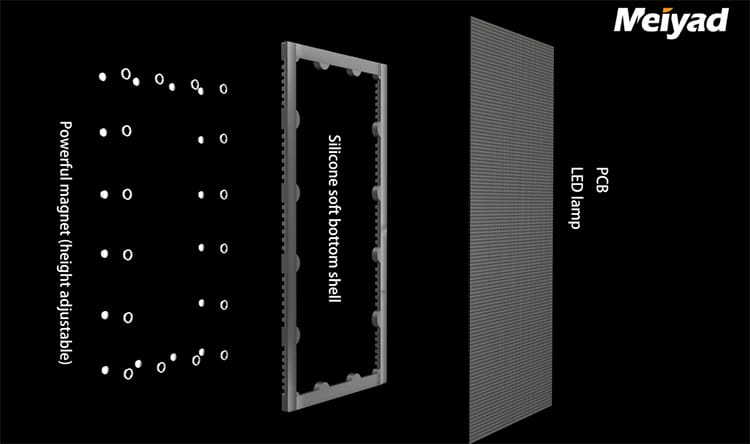

Adjustable Magnetic Design: The Meiyad module features a powerful magnet system with adjustable height, facilitating seamless installation and enabling users to customize the display according to their specific needs.
Silicone Soft Bottom Shell: This unique design not only enhances flexibility but also provides added protection, making the modules resilient to various environmental conditions.

Bending Capability: With a maximum bending angle of 120°, these modules can conform to different shapes, enabling innovative designs that were previously difficult to achieve with traditional LED displays.
Ultra-thin Profile: The sleek, ultra-thin design of the Meiyad modules allows for a lightweight installation, making them suitable for a variety of applications without compromising on quality.

Customization Options

Meiyad offers an impressive range of configurations, including different sizes and pixel pitches. The available specifications include:

240mm*120mm: P0.9375, P1.25, P1.579, P1.875, P2, P2.5, P3
250mm*100mm: P1.5625
320mm*160mm: P1.25, P1.538, P1.667, P1.86, P2, P2.5, P3.076, P4

These options allow for customization tailored to various installation scenarios and design preferences.

Seamless Integration

One of the standout features of the Meiyad modules is their ability to combine flexible and flat LED modules. This capability enables seamless splicing, ensuring consistent color output across the display. The integration not only saves costs but also meets the aesthetic demands of modern installations.

Additionally, the modules support double-sided display designs, offering even greater flexibility for creative display setups.

Advanced Technology

Meiyad’s commitment to innovation is further exemplified by its support for GOB (Glue on Board) technology, which provides enhanced waterproof and dustproof capabilities. This makes the modules ideal for a range of environments, from indoor exhibitions to more rugged settings.

Applications

The Meiyad Indoor Flexible LED Module is versatile and can be employed in various applications, including:

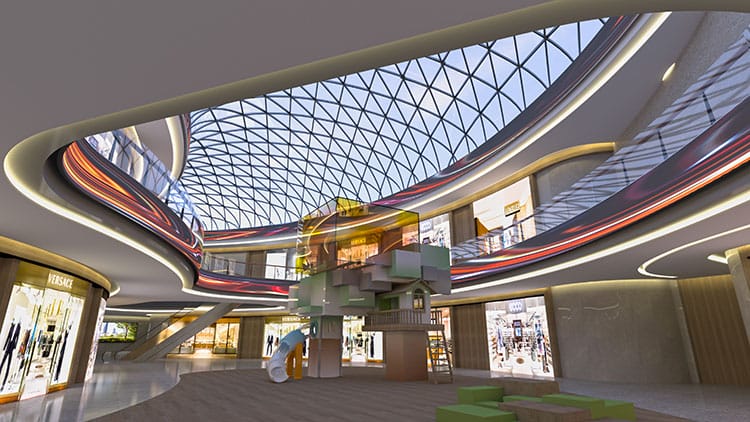

Shopping Mall Atriums: Create stunning visual experiences that captivate shoppers.

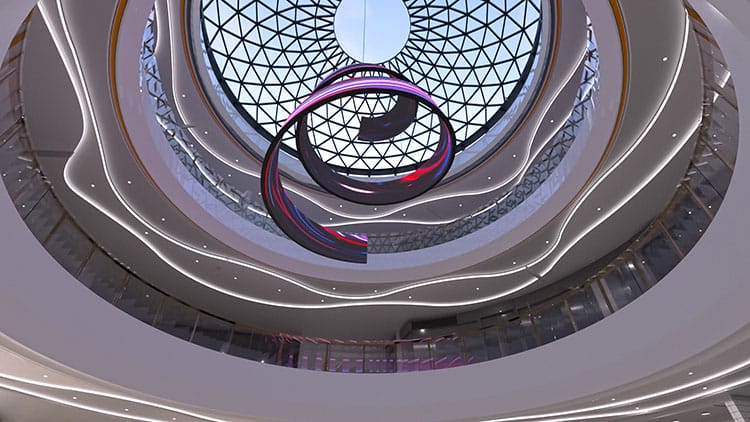

Double-sided Spiral Ribbon Screens: Engage audiences from multiple angles.
Virtual Studio Displays: Enhance broadcasting environments with dynamic backgrounds.
Cylindrical LED Screens: Achieve immersive visuals that wrap around structures.
Ceiling Displays: Transform overhead spaces into eye-catching focal points.

Conclusion

The Meiyad Indoor Flexible LED Module is not just a product; it represents a shift in how we approach display technology. By combining innovative features, customizable options, and advanced technology, Meiyad empowers creators and businesses to push the limits of visual storytelling. Whether for retail, events, or creative installations, these modules deliver a remarkable blend of functionality and design, setting a new standard in the flexible LED display market.
